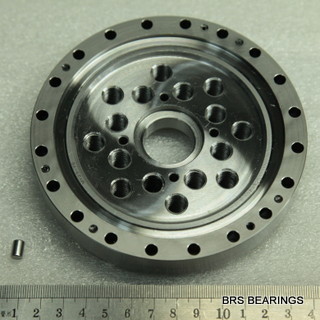

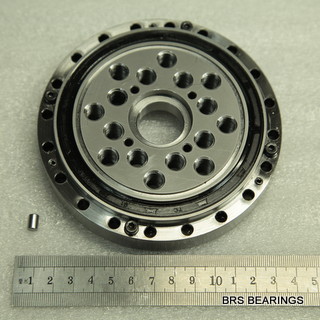

CSF40-XRB Harmonic Reducer Drive Bearing

BRS Harmonic Reducer Drive Bearing CSF-XRB Series
Harmonic reducer drive is a special form of power transmission, it has the advantage of high transmission ratio, high precision, high loading capacity, high efficiency with light weight and small size compared with conventional transmission mode.

BRS CSF-XRB series crossed roller bearing is specially designed for CSF harmonic reducer. Its outer ring is separable and inner ring adopt integrated structure. Both inner ring and outer ring are processed with many precision holes for connecting with working parts.

Application
BRS Harmonic reducer bearing has a wide range of application in electronics industry, industrial automation, industrial robots, packaging machines, printing machines, and medical equipments because of its high precision, high rigidity and high transmission ratio.

Luoyang BRS Bearing Co.,Ltd developed and produced CSF-XRB series harmonic reducer drive bearing, and focus on products’ continuous improvement. BRS Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity. It's popular in domestic market, and also got favorable reputation from customers of Taiwan, Southeast Asia and Europe. To learn CSF40-

XRB's price, detailed parameters, usage and installation, maintanence or other infomation please contact us.

	Harmonic Reducer Bearing CSF40-XRB Parameters
	d	24/32 mm
	D	126 mm
	H	24 mm
	D1	117 mm	PCD
	D2	68 mm	PCD
	D3	50 mm	PCD
	φ1	20-φ5	Mounting Hole
	φ2	8-M10	Mounting Hole
	φ3	8-M10	Mounting Hole
	Mass	2.32 kg
