> CSF Harmonic Drive Gear Head bearing for harmonic reducer

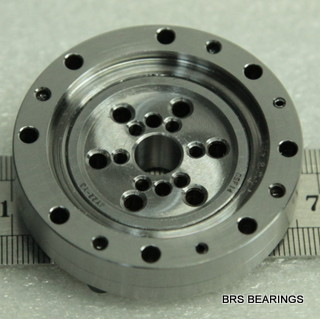

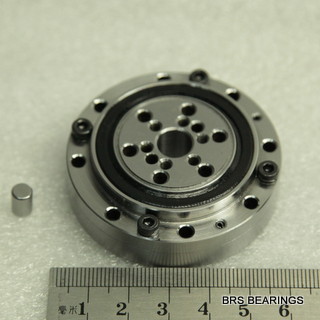

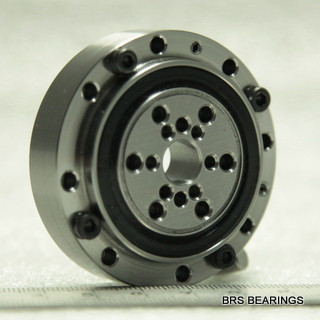

CSF14-XRB Harmonic Reducer Bearing
- Structure:Crossed Roller
- Seals Type：2RS
- Bearing gear: Without
- Material: 52100/100Cr6/GCr15
- Product description: CSF14-XRB Harmonic Reducer Bearing is output bearing for harmonic reducer, it features high precision and high rigidity. Crossed roller bearing with mounting holes.
Product introduction
BRS Harmonic Reducer Special Bearing CSF-XRB Series
CSF14-XRB Harmonic Reducer Bearing
d
9 mm
D
55 mm
H
16.5 mm
D1
49 mm
PCD
D2
23 mm
PCD
D3
14.5 mm
PCD
φ1
8-φ3.5
Mounting Hole
φ2
6-M4
Mounting Hole
φ3
6-M3
Mounting Hole
Mass
0.35 kg
Harmonic reducer Special bearing is widely used in industrial automation and robotic arm because of its high precision, high rigidity and high transmission ratio. BRS HD series crossed roller bearing CSF-XRB is specially designed for CSF harmonic reducer. Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.
BRS Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity. It's popular in domestic market, and also got favorable reputation from customers of Taiwan, Southeast Asia and Europe.
Luoyang BRS Bearing Co.,Ltd specialized in producing Harmonic Reducer Crossed Roller Bearing CSF-XRB Series. To learn CSF-XRB series' price, detailed parameters, usage and installation, maintanence or other infomation please contact us.
Models
Boundary Dimension (mm)
Mounting Hole Size（PCD&SPEC)
Mass
D
d
H
D1
D2
D3
φ1
φ2
φ3
kg
CSF14-XRB
55
9
16.5
49
23
14.5
8-φ3.5
6-M4
6-M3
0.25
CSF17-XRB
62
10
16.5
56
27
17.5
10-φ3.5
6-M5
6-M4
0.27
CSF20-XRB
70
14
16.5
64
32
24
12-φ3.4
8-M6
8-M5
0.36
CSF25-XRB
85
20
18.5
79
42
30
16-φ3.4
8-M8
8-M6
0.65
CSF32-XRB
112
26
22.5
104
55
40
16-φ4.5
8-M10
8-M8
1.1
CSF40-XRB
126
24/32
24
117
68
50
20-φ5
8-M10
8-M10
1.6
CSF50-XRB
157
32/40
31
147
84
60
16-φ5.5
8-M14
8-M14
3.6
CSF65-XRB
210
44/52
39
198
110
80
20-φ6.5
8-M16
8-M16
7.8
Lubrication
Bearings have been filled with complex lithium grease before delivery, so they can be immediately put into application under normal working conditions, without extra lubrication during operating. At the initial stage of running, bearings' friction torque will increase temporarily, and will become stable along with running, after grease evenly coated the raceway and rollers.
Favorable price based on large quantity, please contact rigia@brsbearing.com for more info.
