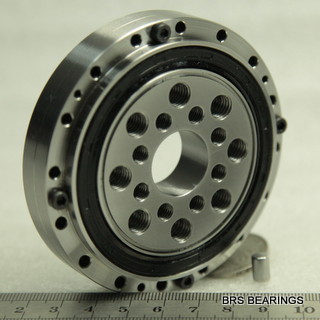

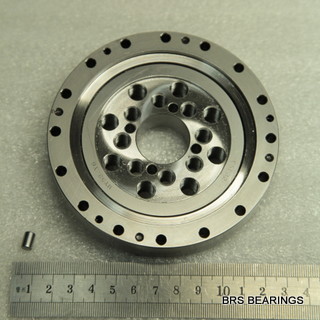

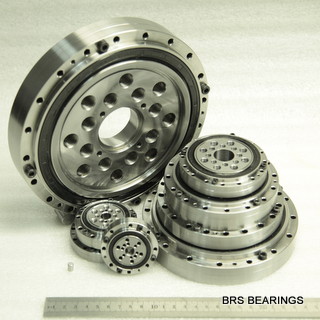

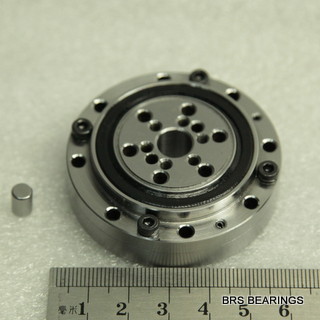

> CSF Harmonic Drive Gear Head bearing for harmonic reducer
Crossed roller bearings for harmornic reducer
- Structure:Crossed Roller Bearing
- Precision: ISO P5
- Seals type:double seals
- Features:with mounting holes
- Product description: RIGIA Special crossed roller bearings for harmonic drive,planetary reducer, can be applied with pre-load,has no clearance,high running accuracy,light weight,high load capacity,
Product introduction
RIGIA Special crossed roller bearings for harmonic drive,planetary reducer,has the feature of high running accuracy,light weight,high loading capacity, etc.
CSF-17-2UH
CSF-20-2UH
CSF-25-2UH
CSF-32-2UH
CSF-40-2UH
CSF-45-2UH
CSF-50-2UH
CSF-58-2UH
CSF-65-2UH
Suited for harmonic reducer models:
CSF-14-2UHCSF-17-2UH
CSF-20-2UH
CSF-25-2UH
CSF-32-2UH
CSF-40-2UH
CSF-45-2UH
CSF-50-2UH
CSF-58-2UH
CSF-65-2UH
FOR more info please contact dennislee@brsbearing.com, +86-15515308090
| CSFRIGIA crossed roller bearings for harmornic bearing special（Industry Automative drive Robot joint bearings） | ||||||||||
| 轴承型号 | 外 形 尺 寸（mm） | 安 装 孔 尺 寸 （孔中心径及孔规格） | 质量 | |||||||
| Designation | Boundary Dimension (mm) | Mounting Hole Size（PCD&SPEC) | Mass | |||||||
| CSF14-XRB | 55 | 9 | 16.5 | 49 | 23 | 14.5 | 8-φ3.5 | 6-M4 | 6-M3 | 0.35 |
| CSF17-XRB | 62 | 10 | 16.5 | 56 | 27 | 17.5 | 10-φ3.5 | 6-M5 | 6-M4 | 0.4 |
| CSF20-XRB | 70 | 14 | 16.5 | 64 | 32 | 24 | 12-φ3.4 | 8-M6 | 8-M5 | 0.5 |
| CSF25-XRB | 85 | 20 | 18.5 | 79 | 42 | 30 | 16-φ3.4 | 8-M8 | 8-M6 | 0.72 |
| CSF32-XRB | 112 | 26 | 22.5 | 104 | 55 | 40 | 16-φ4.5 | 8-M10 | 8-M8 | 1.74 |
| CSF40-XRB | 126 | 24/32 | 24 | 117 | 68 | 50 | 20-φ5 | 8-M10 | 8-M10 | 2.32 |
| CSF50-XRB | 157 | 32/40 | 31 | 147 | 84 | 60 | 16-φ5.5 | 8-M14 | 8-M14 | 4.64 |

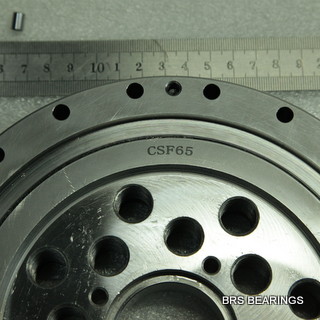

| CSF65-XRB | 210 | 44/52 | 39 | 198 | 110 | 80 | 20-φ6.5 | 8-M16 | 8-M16 | 9.85 |
