> THK RE Separable Inner Ring Cross-Roller Bearings

THK RE 5013-RE35020 separable Inner ring Cross-roller bearings

Part No. Re2013-35020
Precision: ISO P5/P4
SIZE: 50-800MM ID
SPEC: Doube inner ring crossed roller bearings

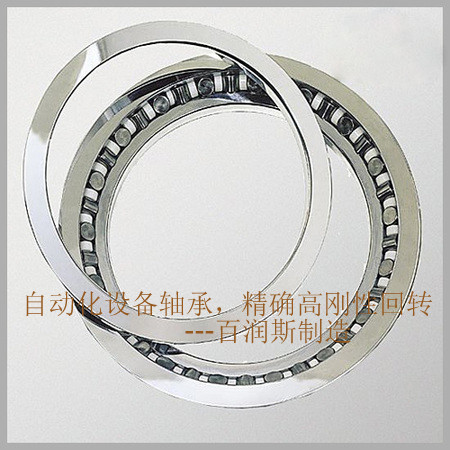

Product description: Crossed roller bearings with double inner rings, THK RE model,The bearing features two sets of races and rollers brought together at right angles with alternate rollers facing in opposite directions.D
Inquiry

Product introduction

BRS Model No.	Main dimensions			Basic load rating
	Main dimensions			(Radial)
	Inner diameter	Outer diameter	Width	Dynamic rating	Static rating
	d	D	B B₁	C	C₀
	mm	mm	mm	kN	kN
RE 2008	20	36	8	3.23	3.1
RE 2508	25	41	8	3.63	3.83
RE 3010	30	55	10	7.35	8.36
RE 3510	35	60	10	7.64	9.12
RE 4010	40	65	10	8.33	10.6
RE 4510	45	70	10	8.62	11.3
RE 5013	50	80	13	16.7	20.9
RE 6013	60	90	13	18	24.3
RE 7013	70	100	13	19.4	27.7
RE 8016	80	120	16	30.1	42.1
RE 9016	90	130	16	31.4	45.3
RE 10016	100	140	16	31.7	48.6
RE 10020	100	150	20	33.1	50.9
RE 11012	110	135	12	12.5	24.1
RE 11015	110	145	15	23.7	41.5
RE 11020	110	160	20	34	54
RE 12016	120	150	16	24.2	43.2
RE 12025	120	180	25	66.9	100
RE 13015	130	160	15	25	46.7
RE 13025	130	190	25	69.5	107
Model No.	Main dimensions			Basic load rating
	Main dimensions			(Radial)
	Inner diameter	Outer diameter	Width	Dynamic rating	Static rating
	d	D	B B₁	C	C₀
	mm	mm	mm	kN	kN
RE 14016	140	175	16	25.9	50.1
RE 14025	140	200	25	74.8	121
RE 15013	150	180	13	27	53.5
RE 15025	150	210	25	76.8	128
RE 15030	150	230	30	100	156
RE 16025	160	220	25	81.7	135
RE 17020	170	220	20	29	62.1
RE 18025	180	240	25	84	143
RE 19025	190	240	25	41.7	82.9
RE 20025	200	260	25	84.2	157
RE 20030	200	280	30	114	200
RE 20035	200	295	35	151	252
RE 22025	220	280	25	92.3	171
RE 24025	240	300	25	68.3	145
RE 25025	250	310	25	69.3	150
RE 25030	250	330	30	126	244
RE 25040	250	355	40	195	348
RE 30025	300	360	25	75.5	178
RE 30035	300	395	35	183	367
RE 30040	300	405	40	212	409
Model No.	Main dimensions			Basic load rating
	Main dimensions			(Radial)
	Inner diameter	Outer diameter	Width	Dynamic rating	Static rating
	d	D	B B₁	C	C₀
	mm	mm	mm	kN	kN
RE 35020	350	400	20	54.1	143
RE 40035	400	480	35	156	370
RE 40040	400	510	40	241	531
RE 45025	450	500	25	61.7	182
RE 50025	500	550	25	65.5	201
RE 50040	500	600	40	239	607
RE 50050	500	625	50	267	653
RE 60040	600	700	40	264	721
