  > CSF Harmonic Drive Gear Head bearing for harmonic reducer

•
•
•

Product introduction

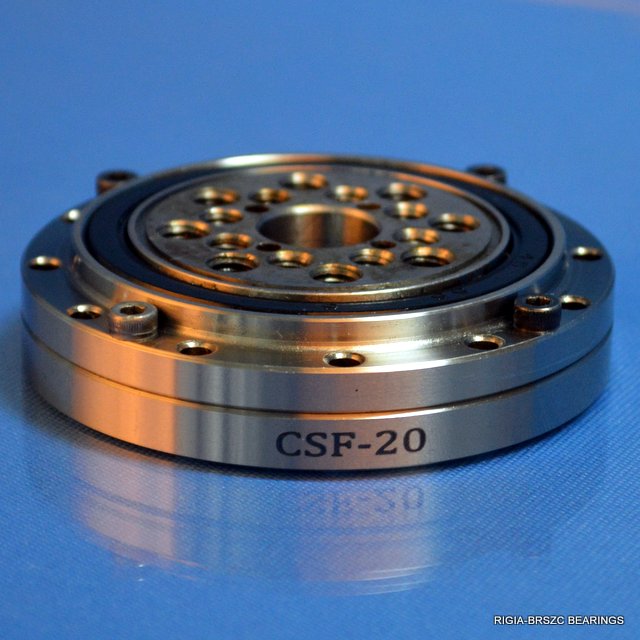

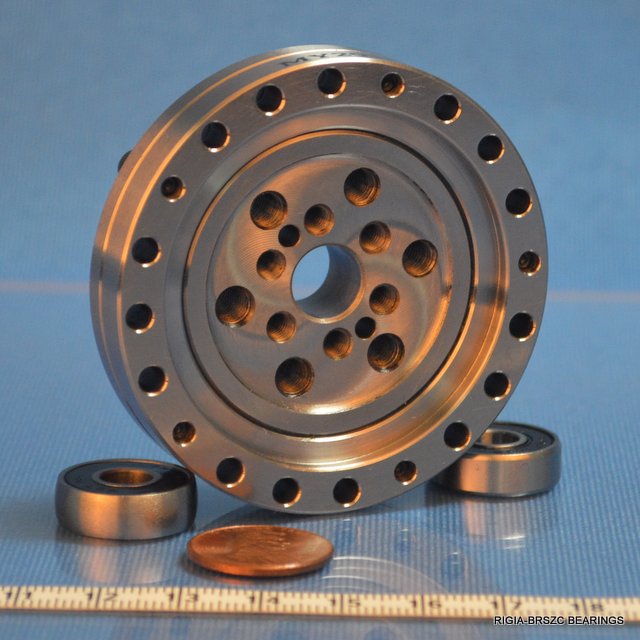

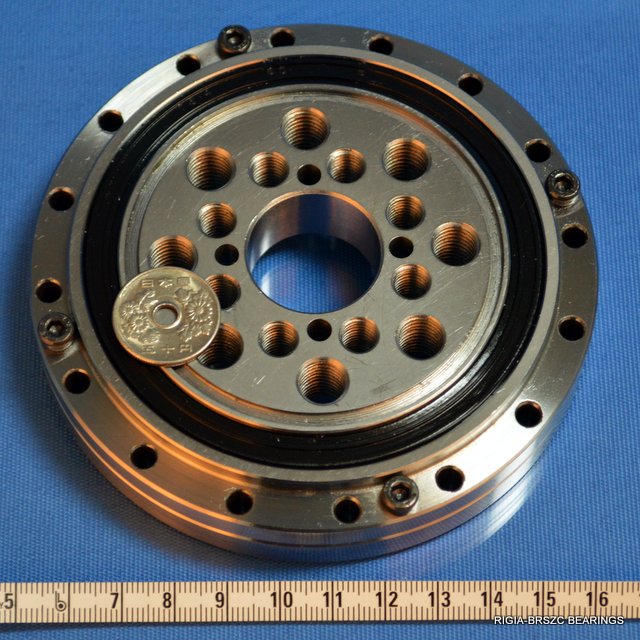

Full ball type cross roller bearing made in china CSF20-XRB

	d	14 mm
	D	70 mm
	H	16.5 mm
	D1	64 mm	PCD
	D2	32 mm	PCD
	D3	24 mm	PCD
	φ1	12-φ3.4	Mounting Hole
	φ2	8-M6	Mounting Hole
	φ3	8-M5	Mounting Hole
	Mass	0.5 kg

Full ball type crossed roller bearing CSF20-XRB has higher capacity than the common type output bearings, which are with separators. Customized harmonic reducer bearing available, please contact us for details.
