  > CSF Harmonic Drive Gear Head bearing for harmonic reducer

•
•
•

Product introduction

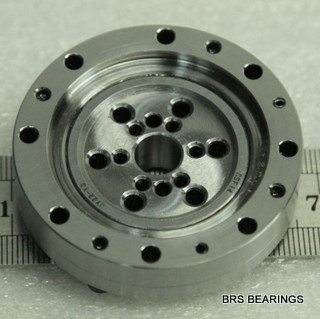

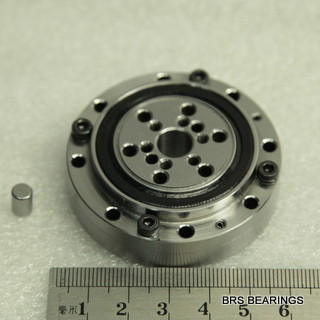

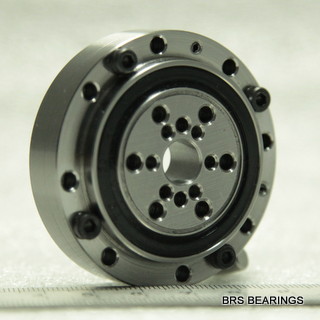

CSF14-XRB Small robot drive bearings China harmonice Special Bearing CSF-XRB Series
Harmonic reducer Special bearing is widely used in industrial automation and robotic arm because of its high precision, high rigidity and high transmission ratio. RIGIA HD series crossed roller bearing CSF-XRB is specially designed for CSF harmonic reducer. Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.

RIGIA Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity. It's popular in domestic market, and also got favorable reputation from customers of Taiwan, Southeast Asia and Europe.

Luoyang BRS Bearing Co.,Ltd specialized in producing Harmonic Reducer Crossed Roller Bearing CSF-XRB Series. To learn CSF-XRB series' price, detailed parameters, usage and installation, maintanence or other infomation please contact us.

	Harmonic Reducer Bearing CSF14-XRB Parameters
	d	9 mm
	D	55 mm
	H	16.5 mm
	D1	49 mm	PCD
	D2	23 mm	PCD
	D3	14.5 mm	PCD
	φ1	8-φ3.5	Mounting Hole
	φ2	6-M4	Mounting Hole
	φ3	6-M3	Mounting Hole
	Mass	0.35 kg
