Product introduction

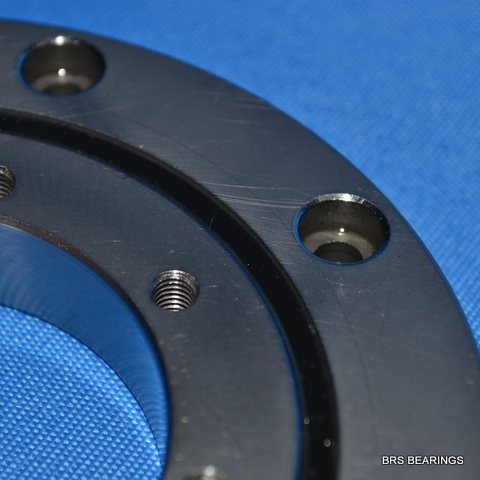

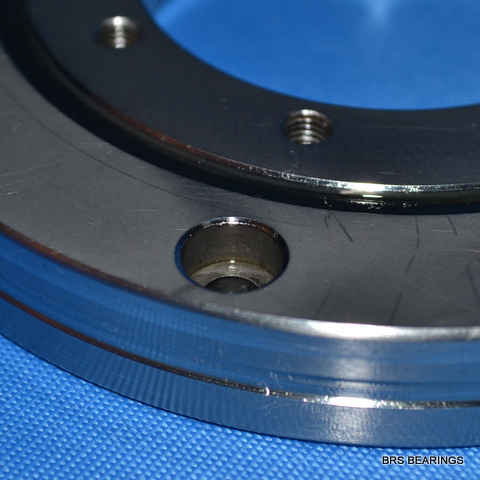

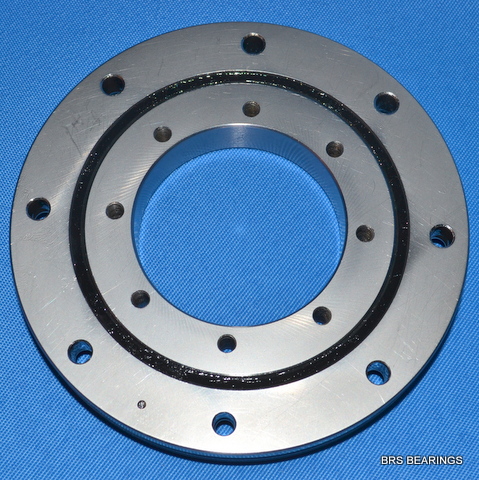

크로스 롤러 베어링 RU66

- 내외륜 일체형
- 장착용 구멍 가공이 되어 있어 누름 플랜지, 하우징이 필요없습니다.
- 내외륜 일체형 구조로 조립에 의한 성능의 영향이 거의 없고 안정된 회전정도 및 토크를 낼 수 있습니다.
- 내륜회전, 외륜회전의 양방향의 사용이 가능합니다.

	크로스 롤러 베어링 RU66 규격
	Shaft dia:	35 mm
	d	35 mm
	D	95 mm
	dp	66 mm	Roller pitch circle dia.
	B	15 mm
	d1	3.1 mm
	r/min	0.6 r/min	Rotational speed
	ds (max)	59	Shoulder Height
	Dh (min)	74	Shoulder Height
	Cr	17.5 KN	Basic static load rating
	C0r	22.3 KN	Basic dynamic load rating
	Mass	0.62 kg
	PCD1	45 mm
		8-M4 through	Mounnting hole
	PCD2	83 mm
		8-φ4.5 drilled through, φ8 counter bore depth 4.4	Mounnting hole

RU형 (내외륜 일체형)

RU42

RU66
RU85
RU124(G)
RU124X
RU148(G)
RU148X
RU178(G)
RU178X
RU228(G)
RU228X
RU297(G)
RU297X
RU445(G)
RU445X
