> THK RB Slim Type Crossed Roller Bearing

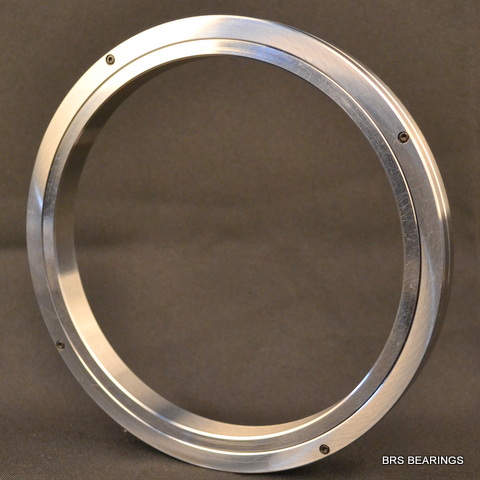

RB22025 crossed roller bearings
- Structure:Crossed Roller Bearing
- Gear teeth: without
- Seals type:open
- Material: 52100/100Cr6/GCr15
- Product description: RB22025 crossed roller bearings have integrated inner ring and separable outer ring(fixed by screw), thin section(slim type), suited for where space is limited, and inner ring running accuracy is requ
Product introduction
RB22025 crossed roller bearings
d: 220mm
D: 280mm
B: 25mm
C: 92.3kN
Co: 171kN
Mass: 4.1kg
RB22025 crossed roller bearings have integrated inner ring and separable outer rings(fixed by screw), it's thin section(slim type), suited for where space is limited, and inner ring running accuracy is required.
| Model No. | d | D | B | C | Co | Mass | Equivalent Models | |
| mm | mm | mm | kN | kN | kg | IKO | NSK | |
| RB17020 | 170 | 220 | 20 | 29 | 62.1 | 2.21 |
|
|
| RB18025 | 180 | 240 | 25 | 84 | 143 | 3.44 |
|
|
| RB19025 | 190 | 240 | 25 | 41.7 | 82.9 | 2.99 |
|
|
| RB20025 | 200 | 260 | 25 | 84.2 | 157 | 4 | CRB20025 | NRXT20025 |
| RB20030 | 200 | 280 | 30 | 114 | 200 | 6.7 | CRB20030 | NRXT20030 |
| RB20035 | 200 | 295 | 35 | 151 | 252 | 9.6 | CRB20035 |
|
| RB22025 | 220 | 280 | 25 | 92.3 | 171 | 4.1 |
|
|
| RB24025 | 240 | 300 | 25 | 68.3 | 145 | 4.5 |
|
|
| RB25025 | 250 | 310 | 25 | 69.3 | 150 | 5 | CRB25025 | NRXT25025 |
| RB25030 | 250 | 330 | 30 | 126 | 244 | 8.1 | CRB25030 | NRXT25030 |
| RB25040 | 250 | 355 | 40 | 195 | 348 | 14.8 | CRB25040 |
|
| RB30025 | 300 | 360 | 25 | 76.3 | 178 | 5.9 | CRB30025 | NRXT30025 |
| RB30035 | 300 | 395 | 35 | 183 | 367 | 13.4 | CRB30035 | NRXT30035 |
| RB30040 | 300 | 405 | 40 | 212 | 409 | 17.2 | CRB30040 | NRXT30040 |
| RB35020 | 350 | 400 | 20 | 54.1 | 143 | 3.9 |
|
|
| RB40035 | 400 | 480 | 35 | 156 | 370 | 14.5 | CRB40035 | NRXT40035 |
| RB40040 | 400 | 510 | 40 | 241 | 531 | 23.5 | CRB40040 | NRXT40040 |
| RB45025 | 450 | 500 | 25 | 61.7 | 182 | 6.6 |
|
|
| RB50025 | 500 | 550 | 25 | 65.5 | 201 | 7.3 |
|
|
| RB50040 | 500 | 600 | 40 | 239 | 607 | 26 | CRB50040 | NRXT50040 |
| RB50050 | 500 | 625 | 50 | 267 | 653 | 41.7 | CRB50050 | NRXT50050 |
| RB60040 | 600 | 700 | 40 | 264 | 721 | 29 | CRB60040 | NRXT60040 |
| RB70045 | 700 | 815 | 45 | 281 | 836 | 46 | CRB70045 |
|
| RB80070 | 800 | 950 | 70 | 468 | 1330 | 105 | CRB80070 |
|
| RB90070 | 900 | 1050 | 70 | 494 | 1490 | 120 |
|
|
| RB1000110 | 1000 | 1250 | 110 | 1220 | 3220 | 360 |
|
|
| RB1250110 | 1250 | 1500 | 110 | 1350 | 3970 | 440 |
|
|
| Model No. | d | D | B | C | Co | Mass | Equivalent Models | |
| mm | mm | mm | kN | kN | kg | IKO | NSK | |
