> THK RA Super slim Separable outer ring crossed roller bearing

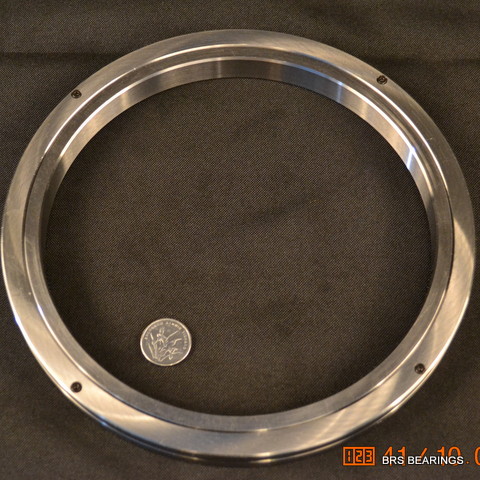

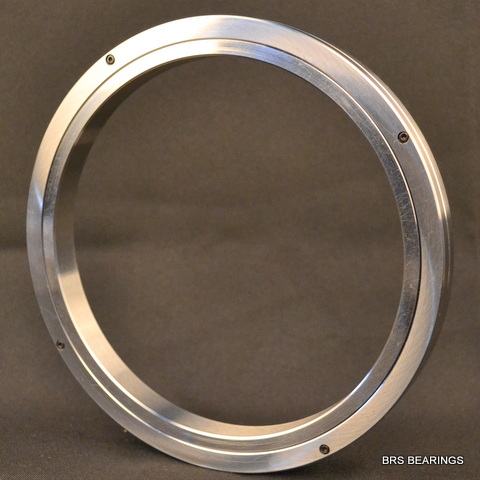

RA5008 crossed roller bearing
- Structure: cross roller bearing
- Gear teeth: without
- Sealing: NBR
- Material: 52100/100Cr6/GCr15
- Product description: RA5008 crossed roller bearing belongs to THK separable outer ring type cross roller bearings, it's ultra-thin type, inner ring rotation.
Product introduction
RA5008 crossed roller bearing
|
d | 50 mm |
| D | 66 mm | |
| B | 8 mm | |
| Cr | 5.1 kN | |
| C0r |
7.19 kN |
|
| Mass |
0.08 kg |
RIGIA THK type RA5008 Crossed Roller Bearing has high rigidity, loading capacity and rotation accuracy. It has integrated inner ring and separable outer ring, share the same structure with RB crossed roller bearing except it's ultra-thin. Suited for where light weight, compact design are required, such as the swiveling units of industrial robot or manipulators.
More RA series cross roller bearing models:
| Model No. | d (mm) | D (mm) | B (mm) | Cr (kN) | Cor (kN) | Mass(kg) |
| RA5008 | 55 | 66 | 8 | 5.1 | 7.19 | 0.08 |
| RA6008 | 60 | 76 | 8 | 5.68 | 8.68 | 0.09 |
| RA7008 | 70 | 86 | 8 | 5.98 | 9.8 | 0.1 |
| RA8008 | 80 | 96 | 8 | 6.37 | 11.3 | 0.11 |
| RA9008 | 90 | 106 | 8 | 6.76 | 12.4 | 0.12 |
| RA10008 | 100 | 116 | 8 | 7.15 | 13.9 | 0.14 |
| RA11008 | 110 | 126 | 8 | 7.45 | 15 | 0.15 |
| RA12008 | 120 | 136 | 8 | 7.84 | 16.5 | 0.17 |
| RA13008 | 130 | 146 | 8 | 7.94 | 17.6 | 0.18 |
| RA14008 | 140 | 156 | 8 | 8.33 | 19.1 | 0.19 |
| RA15008 | 150 | 166 | 8 | 8.82 | 20.6 | 0.2 |
| RA16013 | 160 | 186 | 13 | 23.3 | 44.9 | 0.59 |
| RA17013 | 170 | 196 | 13 | 23.5 | 46.5 | 0.64 |
| RA18013 | 180 | 206 | 13 | 24.5 | 49.8 | 0.68 |
| RA19013 | 190 | 216 | 13 | 24.9 | 51.5 | 0.69 |
| RA20013 | 200 | 226 | 13 | 25.8 | 54.7 | 0.71 |
To learn more about our company or get the Installation Instructions of RA5008 slewing bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of RA5008 bearing are available upon request.
