  > INA SX0118 Series Crossed Roller bearing

•
•
•

Product introduction

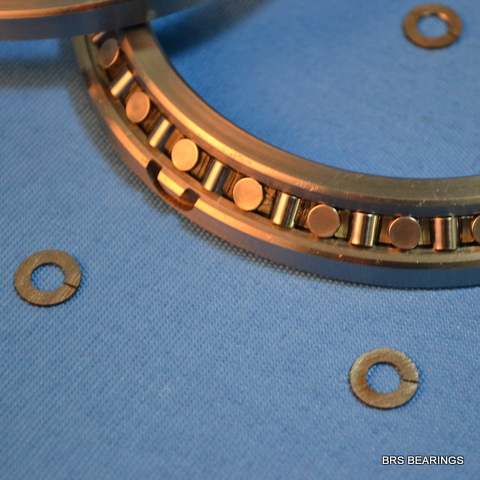

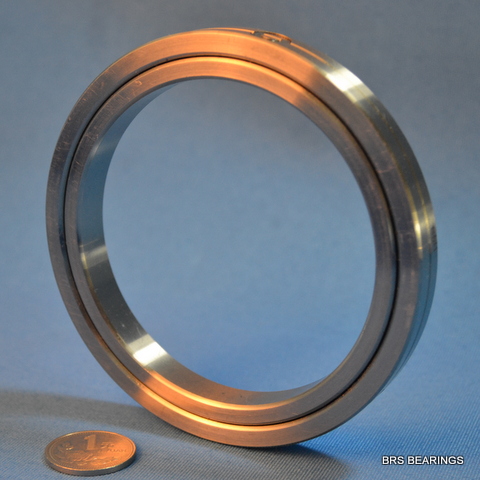

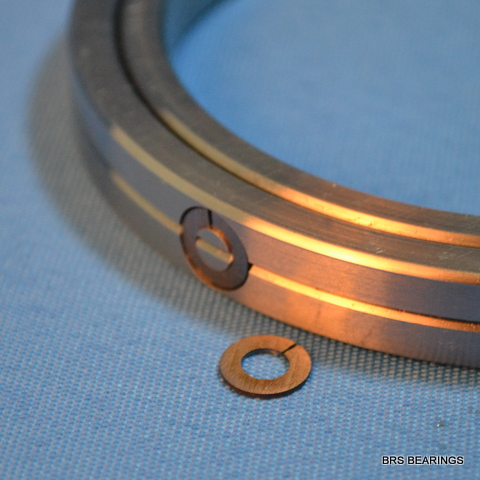

	SX011814 Crossed Roller Bearing
	d	70 mm
	D	90 mm
	B	10 mm
	rmin	0.6 mm
	Ca	15.4 KN	Basic dynamic load rating, axial
	Coa	51 KN	Basic dynamic load rating, axial
	Cr	11 KN	Basic dynamic load rating, radial
	Cor	20.4 KN	Basic static load rating, radial
	Mass	0.3 kg

SX011814 Robotic high rigidity Crossed Roller Bearing Manufacture China belongs to INA SX011 series cross roller bearing model, applied on CNC turret Punch (Amada) etc.

Model	di (mm)	Da (mm)	H (mm)	Mass (kg)	Equivalent Deep groove ball bearings
SX011814	70	90	10	0.3	61814
SX011818	90	115	13	0.4	61818
SX011820	100	125	13	0.5	61820
SX011824	120	150	16	0.8	61824
SX011828	140	175	18	1.1	61828
SX011832	160	200	20	1.7	61832
SX011836	180	225	22	2.3	61836
SX011840	200	250	24	3.1	61840
SX011848	240	300	28	5.3	61848
SX011860	300	380	38	12	61860
SX011868	340	420	38	13.5	61868
SX011880	400	500	46	24	61880
SX0118/500	500	620	56	44	618/500

Luoyang BRS Bearing Co.,Ltd specialized in producing SX011814 cross roller bearing for CNC turret Punch Amada. To learn SX011814 Crossed Cylindrical Roller Bearing INA structure's price, detailed parameters, usage and installation, maintanence or other infomation please contact us.
