> SHF Harmonic Reducer Bearing

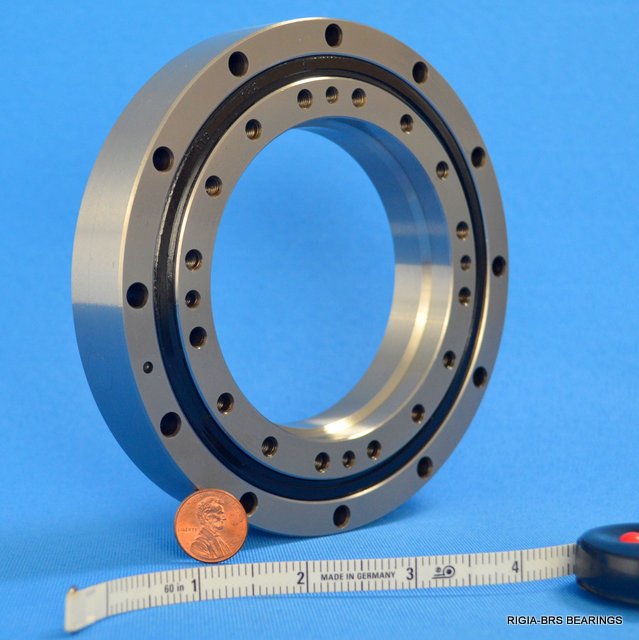

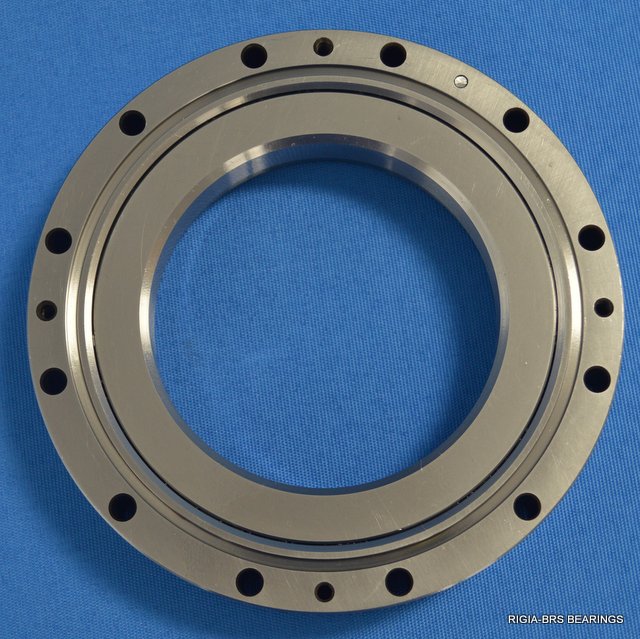

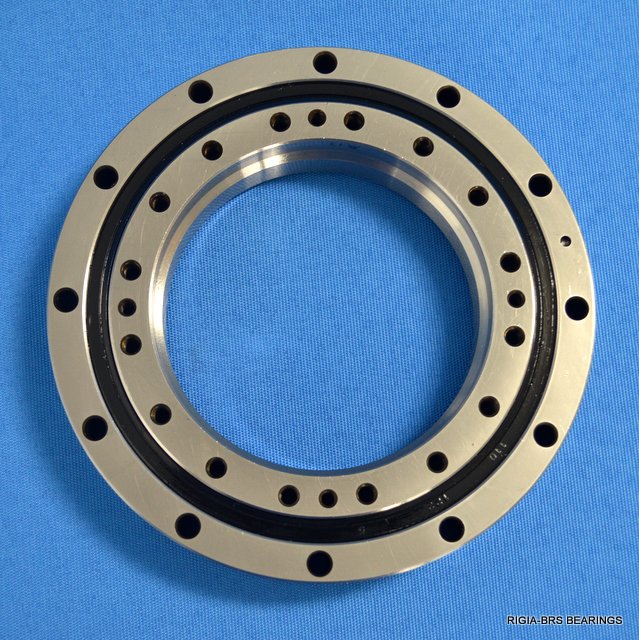

SHF-25-50-2UH-SPK0091 reducer output bearing
- Structure:Crossed Roller Bearing
- Gear teeth: without
- Seals type:double seals
- Material: 52100/100Cr6/GCr15
- Product description: RIGIA offers SHF-25 output bearings for SHF-25-50-2UH-SPK0091 harmonic reducer, it's high stiffness crossed roller bearing with mounting holes on outer ring, integrated inner/outer ring.
Product introduction
SHF-25-50-2UH-SPK0091 reducer output bearing
model: SHF-25, SHFOP25-XRB
size: 66/68*110*20.7mm (customized size available)
mass:0.75KG
structure: single row crossed roller bearing with mounting holes on outer ring, integrated inner/outer ring type.
Application: SHF-25-2UH harmonic reducer, robot axis bearing
SHF-25 out put bearings suited for harmonic reducer:
SHF-25-30-2UH
SHF-25-50-2UH
SHF-25-80-2UH
SHF-25-100-2UH
SHF-25-120-2UH
SHF-25-160-2UH
Other crossed roller bearing models for SHF harmonic reducer
| Part Number | Major Dimensions (mm) | ||
| D | d# | H | |
| SHFOP14-XRB | 70 | 38*5-35.6*9.6 | 15.1 |
| SHFOP17-XRB | 80 | 47*6.5-44.1*9.9 | 17 |
| SHFOP20-XRB | 90 | 54 | 18.5 |
| SHFOP25-XRB | 110 | 68*7.5-66*12.2 | 20.7 |
| SHFOP32-XRB | 142 | 88*8-84*14.5 | 24.4 |
| SHFOP40-XRB | 170 | 108*9-106*19 | 30 |
| SHFOP50-XRB | 214 | 135 | 36 |
