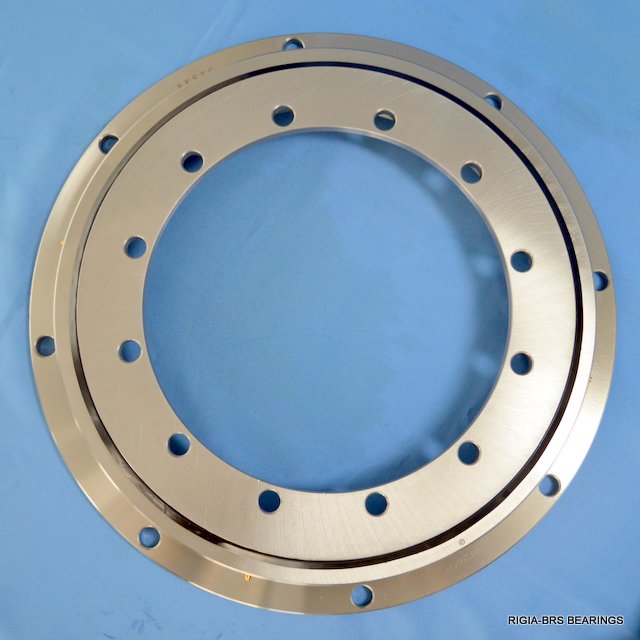

Rollix 23 1091 01 slewing ring bearings
- Structure: four point contact ball bearing with flange
- Gear: without
- Sealed Type: sealed both sides
- Material: GCr15/52100/100Cr6
- Product description: Rollix 23 1091 01 slewing ring bearings are four point contact ball slewing bearing with flange on inner and outer rings.
Product introduction
Rollix 23 1091 01 slewing ring bearings structure
| Model | Dimensions | Gears | Weight | ||||
| d(mm) | D(mm) | Width(mm) | Fe | Fi | D | ||
| 23 0411 01 | 304 | 518 | 56 | 5 | 99 | 495 | 23 |
| 23 0541 01 | 434 | 648 | 56 | 6 | 105 | 630 | 34 |
| 23 0641 01 | 534 | 748 | 56 | 6 | 122 | 732 | 40 |
| 23 0741 01 | 634 | 848 | 56 | 6 | 138 | 828 | 46 |
| 23 0841 01 | 734 | 948 | 56 | 8 | 117 | 936 | 52 |
| 23 0941 01 | 834 | 1048 | 56 | 8 | 129 | 1032 | 58 |
| 23 1091 01 | 984 | 1198 | 56 | 8 | 148 | 1184 | 67 |
Equivalent Models
| INA | SKF | KAYDON | IMO |
| VLU200414 | RKS.23 0411 | RK6-16P1Z | 90-20 0413/0-37012 |
| VLU200544 | RKS.23 0541 | RK6-22P1Z | 90-20 0541/0-37022 |
| VLU200644 | RKS.23 0641 | RK6-25P1Z | 90-20 0641/0-37032 |
| VLU200744 | RKS.23 0741 | RK6-29P1Z | 90-20 0741/0-37042 |
| VLU200844 | RKS.23 0841 | RK6-33P1Z | 90-20 0841/0-37052 |
| VLU200944 | RKS.23 0941 | RK6-37P1Z | 90-20 0941/0-37062 |
| VLU201094 | RKS.23 1091 | RK6-43P1Z | 90-20 1091/0-37072 |
| INA | Rollix | TGB | Rothe Erde |
| VLU200414 | 23-0411-01 | SD.505.20.00.C | 230.20.0400.013 |
| VLU200544 | 23-0541-01 | SD.650.20.00.C | 230.20.0500.013 |
| VLU200644 | 23-0641-01 | SD.750.20.00.C | 230.20.0600.013 |
| VLU200744 | 23-0741-01 | SD.850.20.00.C | 230.20.0700.013 |
| VLU200844 | 23-0841-01 | SD.950.20.00.C | 230.20.0800.013 |
| VLU200944 | 23-0941-01 | SD.1050.20.00.C | 230.20.0900.013 |
| VLU201094 | 23-1091-01 | SD.1200.20.00.C | 230.20.1000.013 |
To learn more about our company or get the Installation Instructions of Rollix 23 1091 01 slewing ring bearings regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of Rollix 23 1091 01 slewing ring bearings are available upon request.
