> Bearings
Robots chassis slewing bearings
- Structure:four point contact ball slewing bearing
- Gear teeth: without
- Seals type:double seals
- Material: 52100/100Cr6/GCr15
- Product description: BRS produce four point contact ball slewing bearings as Robots chassis slewing bearings, provide stable rotation with high loading capacity
Product introduction
BRS produce four point contact ball slewing bearings as Robots chassis slewing bearings, provide stable rotation with high loading capacity
Related Models:
| Kaydon Part No. | RIG | d (in) | D (in) | H (in) | Hi/Ho(in) | G (lbs) |
Moment Rating Crm (ft-lbs) |
| MTO-050 | RIG 10/80 | 1.968 | 4.331 | 0.787 | 0.728 | 2 | 830 |
| MTO-065 | RIG 10/100 | 2.559 | 5.315 | 0.866 | 0.787 | 4 | 1,330 |
| MTO-122 | RIG 15/174 | 4.803 | 8.898 | 1.339 | 1.142 | 13 | 5,020 |
| MTO-143 | RIG 15/196 | 5.630 | 9.803 | 1.339 | 1.142 | 15 | 8,950 |
| MTO-145 | RIG 20/222 | 5.709 | 11.811 | 1.968 | 1.732 | 37 | 26,000 |
| MTO-145X | RIG 20/222X | 5.709 | 12.286 | 1.968 | 1.732 | 41 | 30,600 |

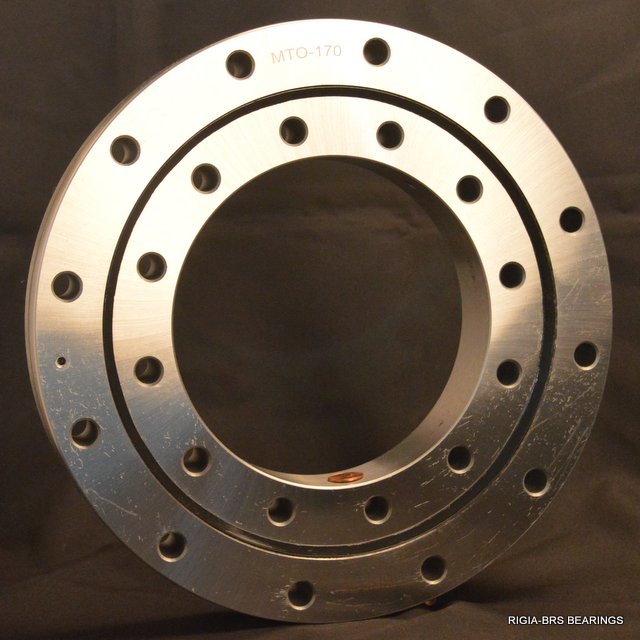

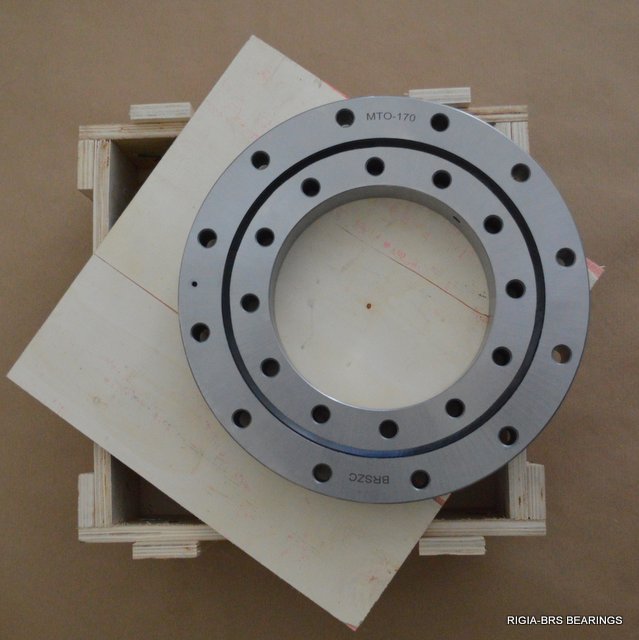

| MTO-170 | RIG 15/240 | 6.693 | 12.205 | 1.811 | 1.614 | 33 | 16,520 |
| MTO-210 | RIG 15/288 | 8.268 | 14.370 | 1.575 | 1.496 | 38 | 44,500 |
| MTO-210X | RIG 20/288 | 8.268 | 14.686 | 1.968 | 1.732 | 48 | 52,100 |
| MTO-265 | RIG 20/342 | 10.433 | 16.535 | 1.968 | 1.732 | 54 | 62,000 |
| MTO-265X | RIG 20/342X | 10.433 | 17.086 | 1.968 | 1.732 | 61 | 71,900 |
| Kaydon Part No. | RIG | Mounting Holes | |||||
| Outer Ring | Inner Ring | ||||||
| Lo (in) | no | Bo (in) | Li (in) | ni | Bi (in) | ||
| MTO-050 | RIG 10/80 | 3.818 | 8 | 0.26 | 2.480 | 8 | 0.26 |
| MTO-065 | RIG 10/100 | 4.724 | 8 | 0.354 | 3.149 | 8 | 0.354 |
| MTO-122 | RIG 15/174 | 8.189 | 12 | 0.354 | 5.512 | 12 | 0.354 |
| MTO-143 | RIG 15/196 | 8.937 | 12 | 0.433 | 6.496 | 12 | 0.433 |
| MTO-145 | RIG 20/222 | 10.630 | 16 | 0.562 | 6.890 | 16 | 0.562 |
| MTO-145X | RIG 20/222X | 10.630 | 16 | 0.594 | 6.890 | 16 | 0.594 |
| MTO-170 | RIG 15/240 | 11.024 | 12 | 0.512 | 7.874 | 12 | 0.512 |
| MTO-210 | RIG 15/288 | 13.190 | 16 | 0.562 | 9.449 | 20 | 0.562 |
| MTO-210X | RIG 20/288 | 13.190 | 16 | 0.594 | 9.449 | 20 | 0.594 |
| MTO-265 | RIG 20/342 | 15.354 | 18 | 0.562 | 11.614 | 24 | 0.562 |
| MTO-265X | RIG 20/342X | 15.354 | 18 | 0.594 | 11.614 | 24 | 0.594 |
| INA | SKF | Rollix | TGB | Rothe Erde |
| VSU200414 | RKS.060.20.0414 | 33-0411-01 | SD.486.20.00.B | 060.20.0414.500.01.1503 |
| VSU200544 | RKS.060.20.0544 | 33-0541-01 | SD.616.20.00.B | 060.20.0544.500.01.1503 |
| VSU200644 | RKS.060.20.0644 | 33-0641-01 | SD.716.20.00.B | 060.20.0644.500.01.1503 |
| VSU200744 | RKS.060.20.0744 | 33-0741-01 | SD.816.20.00.B | 060.20.0744.500.01.1503 |
| VSU200844 | RKS.060.20.0844 | 33-0841-01 | SD.916.20.00.B | 060.20.0844.500.01.1503 |
| VSU200944 | RKS.060.20.0944 | 33-0941-01 | SD.1016.20.00.B | 060.20.0944.500.01.1503 |
| VSU201094 | RKS.060.20.1094 | 33-1091-01 | SD.1166.20.00.B | 060.20.1094.500.01.1503 |
