  > THK RU TYPE Integrated inner and outer ring Crossed Roller Bearing

•
•
•

Product introduction

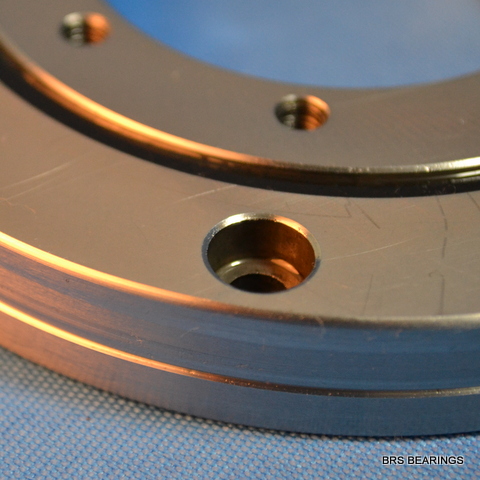

Remote control robot arm slewing bearing RU66UUCC0P5

	RU66UUCC0P5 Parameters
	Shaft dia:	35 mm
	d	35 mm
	D	95 mm
	dp	66 mm	Roller pitch circle dia.
	B	15 mm
	d1	3.1 mm
	r/min	0.6 r/min	Rotational speed
	ds (max)	59	Shoulder Height
	Dh (min)	74	Shoulder Height
	Cr	17.5 KN	Basic static load rating
	C0r	22.3 KN	Basic dynamic load rating
	Mass	0.62 kg
	PCD1	45 mm
		8-M4 through	Mounnting hole
	PCD2	83 mm
		8-φ4.5 drilled through, φ8 counter bore depth 4.4	Mounnting hole

RU66UUCC0P5 slewing bearing is crossed roller slewing bearing, which can provide high running accuracy and take heavy loads. Its inner and outer ring is integrated, so RU66 bearing is suitable for both inner ring and outer ring rotation.

Meanwhile RU66 slewing bearing has light weight and compact structure, so it's suitable for applications where the mounting space is limited, such as the remote control robot arms, manipulators, robot joints, hollow rotating platforms, etc.

Related models:

THK Model	CRBD series	CRBF series	d(mm)	D(mm)	B(mm)
/		CRBF 108 AT UU	10	52	8
RU42	CRBD 02012A	CRBF 2012AT UU	20	70	12
/		CRBF 2512 AT UU	25	80	12
RU66	CRBD 03515A	CRBF 3515 AT UU	35	95	15
RU85	CRBD 05515A	CRBF 5515 AT UU	55	120	15
RU124	CRBD 08022B	CRBF 8022 A UU	80	165	22
RU124(G)	CRBD 08022A	CRBF 8022 AD UU	80	165	22
RU124X	CRBD 08022C	CRBF 8022 AT UU	80	165	22
RU148	CRBD 09025B		90	210	25
RU148(G)	CRBD 09025A		90	210	25
RU148X	CRBD 09025C		90	210	25
RU178	CRBD 11528B		115	240	28
RU178(G)	CRBD 11528A		115	240	28
RU178X	CRBD 11528C		115	240	28
RU228	CRBD 16035B		160	295	35
RU228(G)	CRBD 16035A		160	295	35
RU228X	CRBD 16035C		160	295	35
RU297(G)			210	380	40
RU297X			210	380	40
RU445(G)			350	540	45
RU445X			350	540	45
