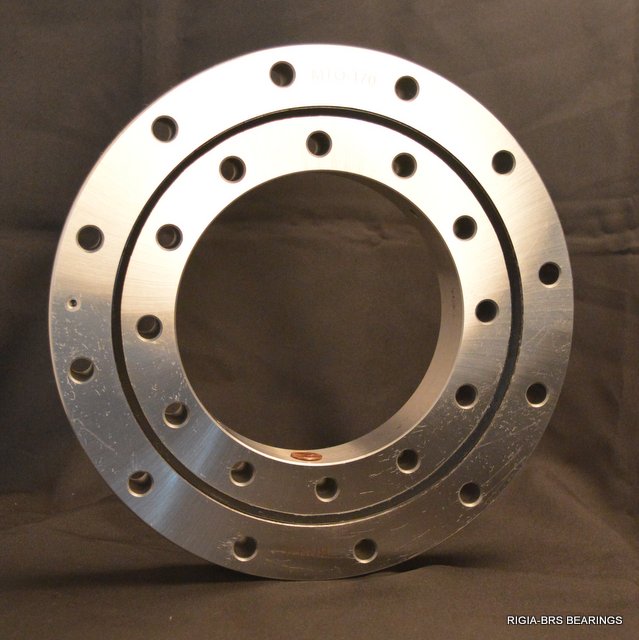

- MTO-170 Slew Bearing (stainless steel)
- RB thin section crossed roller bearing
- Replacement of light duty excavator's
- CSD20-XRB high stiffness cross roller
- Slewing ring bearings for wind turbine
- High speed Outer ring turning RE24025
Contact us
- ADD: Sanyuan Road 3#, New-hi Tech Zone, Luoyang, China
- TEL: +86-18937970107
- FAX: +86-379-62708625
- E-mail: info@rigiabearing.com
> MTO Series No Gear Slewing Ring
Revolving platforms slewing ring MTO-143T
- Structure:four point contact ball bearing
- Gear teeth: without
- Seals type:Open
- Material: 52100/100Cr6/GCr15
- Product description: Revolving platforms slewing ring MTO-143T is four point contact ball slewing bearing, with threaded mounting holes on inner & outer ring. size 143*249*34mm
Product introduction
Revolving platforms slewing ring MTO-143T
structure: four point contact ball slewing bearing, with threaded mounting holes on inner & outer ring.
size:143*249*34mm.
| Kaydon P/N | Outline Dimensions and Weight | Moment Rating Crm | ||||
| di | Do | H | Hi/Ho | G APPROX. | ||
| (mm) | (mm) | (mm) | (mm) | (kg) | (ft-lbs) | |
| MTO-050 | 50 | 110 | 20 | 18 | 0.9 | 830 |
| MTO-050T | 50 | 110 | 20 | 18 | 0.9 | 830 |
| MTO-065 | 65 | 135 | 22 | 20 | 1.8 | 1,330 |
| MTO-065T | 65 | 135 | 22 | 20 | 1.8 | 1,330 |
| MTO-122 | 122 | 226 | 34 | 29 | 6 | 5,020 |
| MTO-122T | 122 | 226 | 34 | 29 | 6 | 5,020 |
| MTO-143 | 143 | 249 | 34 | 29 | 6.8 | 8,950 |
| MTO-143T | 143 | 249 | 34 | 29 | 6.8 | 8,950 |
| MTO-145 | 145 | 300 | 50 | 44 | 16.8 | 26,000 |
| MTO-145T | 145 | 300 | 50 | 44 | 16.8 | 26,000 |
| MTO-145X | 145 | 312 | 50 | 44 | 18.6 | 30,600 |
| MTO-170 | 170 | 310 | 46 | 41 | 15 | 16,520 |
| MTO-170T | 170 | 310 | 46 | 41 | 15 | 16,520 |
| MTO-210 | 210 | 365 | 40 | 38 | 17.2 | 44,500 |
| MTO-210T | 210 | 365 | 40 | 38 | 17.2 | 44,500 |
| MTO-210X | 210 | 373 | 50 | 44 | 21.8 | 52,100 |
| MTO-265 | 265 | 420 | 50 | 44 | 24.5 | 62,000 |
| MTO-265T | 265 | 420 | 50 | 44 | 24.5 | 62,000 |
| MTO-265X | 265 | 434 | 50 | 44 | 27.7 | 71,900 |
To learn more about our company or get the Installation Instructions of Revolving platforms slewing ring MTO-143T regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of Revolving platforms slewing ring MTO-143T are available upon request.
