  > THK RB Slim Type Crossed Roller Bearing

•
•
•

Product introduction

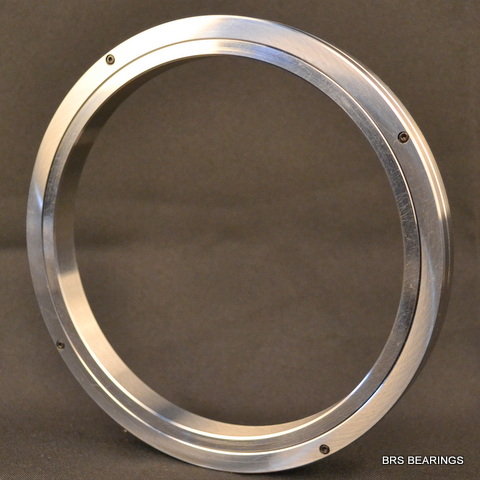

RB13025 crossed roller bearings

	d	130 mm
	D	190 mm
	B	25 mm
	Cr	69.5 kN
	C0r	107 kN
	Mass	2.82 kg

RB13025 crossed roller bearings have integrated inner ring and separable outer ring, suited for inner ring rotation, can provide stable rotation with high running accuracy.

Model No.	d	D	B	C	Co	Mass	Equivalent Models
	mm	mm	mm	kN	kN	kg	IKO	NSK
RB2008	20	36	8	3.23	3.1	0.04
RB2508	25	41	8	3.63	3.83	0.05		NRXT2508
RB3010	30	55	10	7.35	8.36	0.12	CRB3010
RB3510	35	60	10	7.64	9.12	0.13
RB4010	40	65	10	8.33	10.6	0.16	CRB4010	NRXT4010
RB4510	45	70	10	8.62	11.3	0.17
RB5013	50	80	13	16.7	20.9	0.27	CRB5013	NRXT5013
RB6013	60	90	13	18	24.3	0.3	CRB6013	NRXT6013
RB7013	70	100	13	19.4	27.7	0.35	CRB7013	NRXT7013
RB8016	80	120	16	30.1	42.1	0.7	CRB8016	NRXT8016
RB9016	90	130	16	31.4	45.3	0.75	CRB9016	NRXT9016
RB10016	100	140	16	31.7	48.6	0.83
RB10020	100	150	20	33.1	50.9	1.45	CRB10020	NRXT10020
RB11012	110	135	12	12.5	24.1	0.4
RB11015	110	145	15	23.7	41.5	0.75
RB11020	110	160	20	34	54	1.56	CRB11020	NRXT11020
RB12016	120	150	16	24.2	43.2	0.72
RB12025	120	180	25	66.9	100	2.62	CRB12025	NRXT12025
RB13015	130	160	15	25	46.7	0.72
RB13025	130	190	25	69.5	107	2.82	CRB13025	NRXT13025
RB14016	140	175	16	25.9	50.1	1
RB14025	140	200	25	74.8	121	2.96	CRB14025	NRXT14025
RB15013	150	180	13	27	53.5	0.68
RB15025	150	210	25	76.8	128	3.16	CRB15025	NRXT15025
RB15030	150	230	30	100	156	5.3	CRB15030	NRXT15030
RB16025	160	220	25	81.7	135	3.14

Customized size & structure available, please contact us for details.
