  > THK RU TYPE Integrated inner and outer ring Crossed Roller Bearing

•
•
•

Product introduction

Hydraulic arm slewing bearing RU124 is crossed roller bearing, it has impact structure and mounting holes on inner & outer rings, can be used on hydraulic manipulator hopper, hydraulic loader arm, etc.

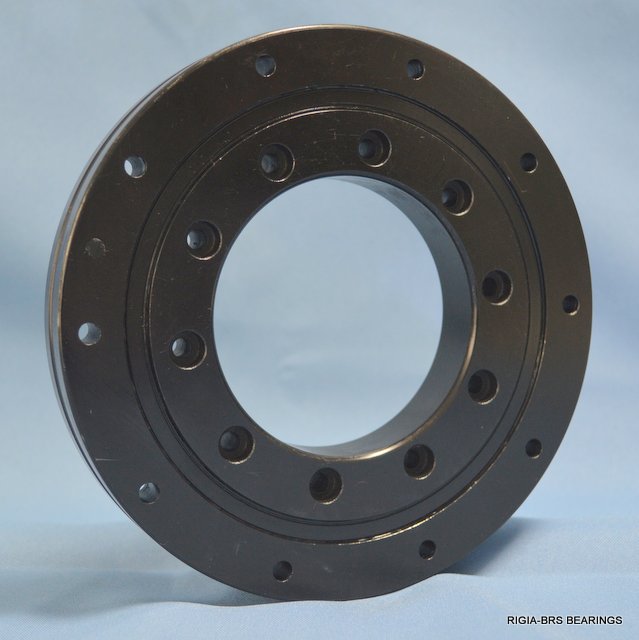

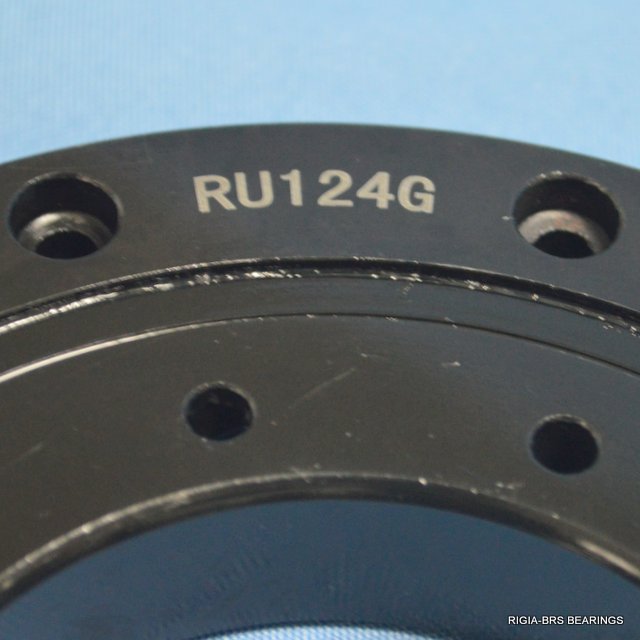

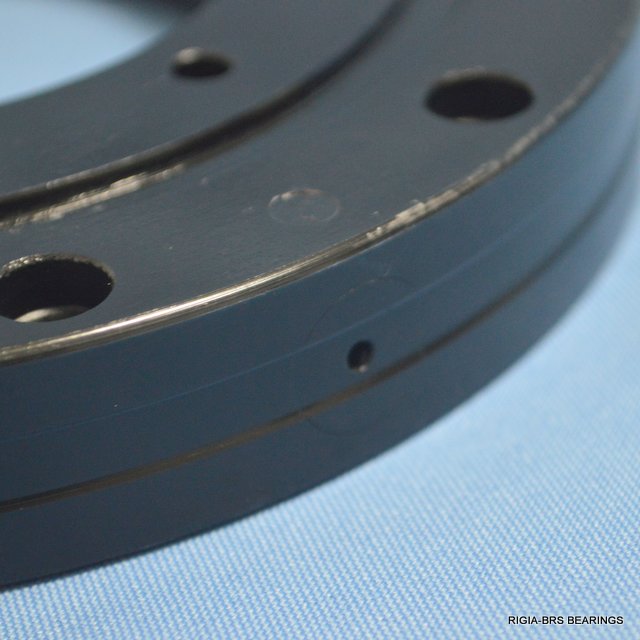

	RU124(G) Crossed Roller Bearing
	Shaft dia:	80 mm
	d	80 mm
	D	165 mm
	dp	124 mm	Roller pitch circle dia.
	B	22 mm
	d1	3.1 mm
	r/min	1 r/min	Rotational speed
	ds (max)	144 mm	Shoulder Height
	Dh (min)	134 mm	Shoulder Height
	Cr	33.1 KN	Basic static load rating
	Cor	50.9 KN	Basic dynamic load rating
	Mass	2.6 kg
	PCD1	97 mm
		10-φ5.5 drilled through,  φ9.5 counter bore depth 5.4	Mounnting hole
	PCD2	148 mm
		10-φ5.5 drilled through,  φ9.5 counter bore dept 5.4	Mounnting hole

	RU124X Crossed Roller Bearing
	Shaft dia:	80 mm
	d	80 mm
	D	165 mm
	dp	124 mm	Roller pitch circle dia.
	B	22 mm
	d1	3.1 mm
	r/min	1 r/min	Rotational speed
	ds (max)	144 mm	Shoulder Height
	Dh (min)	134 mm	Shoulder Height
	Cr	33.1 KN	Basic static load rating
	Cor	50.9 KN	Basic dynamic load rating
	Mass	2.6 kg
	PCD1	97 mm
		10-M5 through	Mounnting hole
	PCD2	148 mm
		10-φ5.5 drilled through,  φ9.5 counter bore dept 5.4	Mounnting hole
