  > SHF Harmonic Reducer Bearing

•
•
•

Product introduction

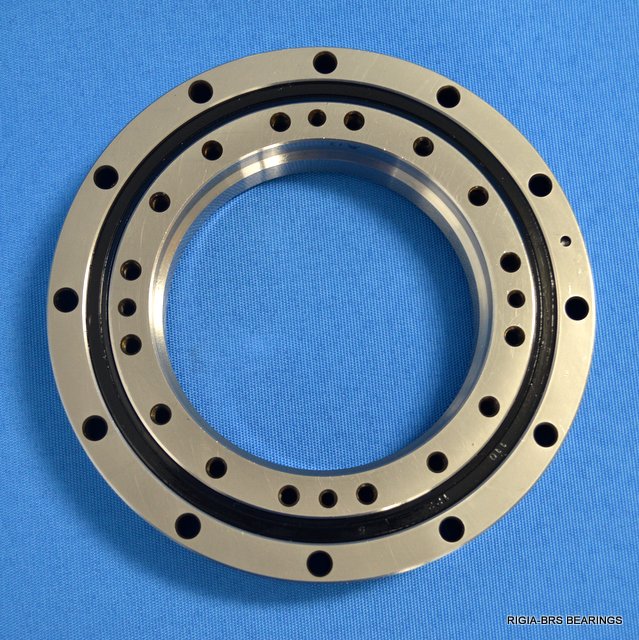

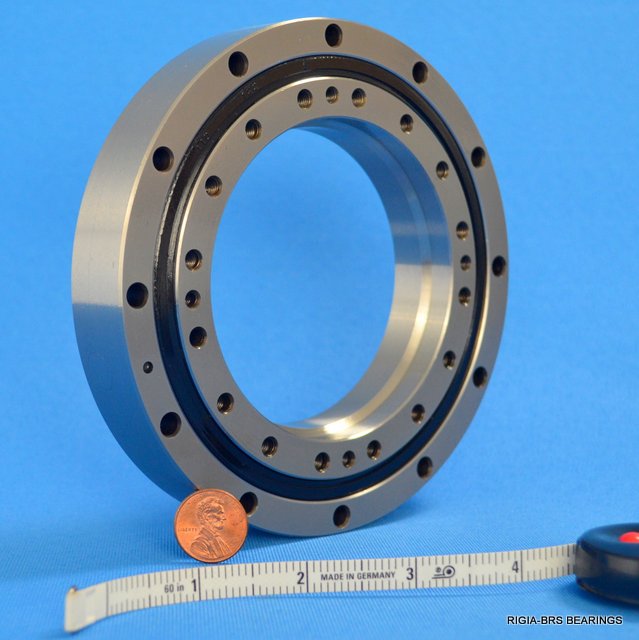

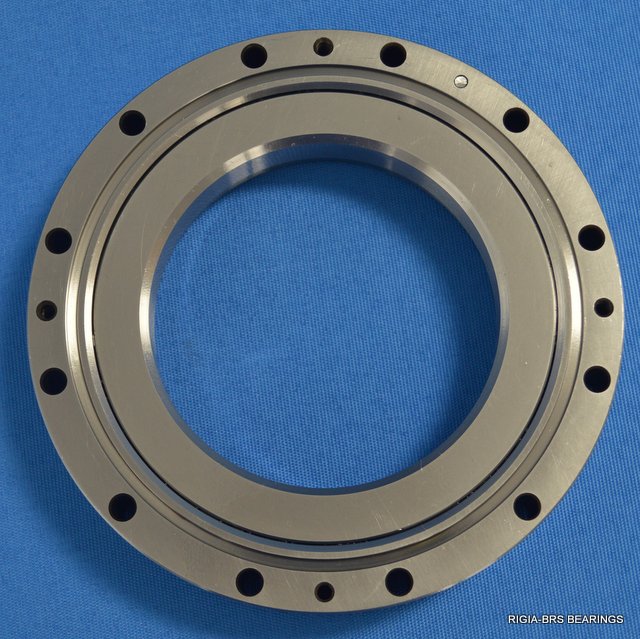

HFUS-17 gear unit harmonic drive gear head bearings SHFOP17-XRB

	d	47*6.5-44.1*9.9 mm
	D	80 mm
	H	17 mm
	D1	12*φ3.5mm*74mm	NO.*SIZE*PCD
	d1	20*M3*54mm	NO.*SIZE*PCD
	S1	68	Main Seal
	S2	64.1(1.1*2)	O ring groove(m*n)
	Mass	0.35 kg

Other harmonic drive gear head bearing for HFUS-2UH units.

SHFOP14-XRB (38/35.6*70*15.1mm)
SHFOP17-XRB (44.1*80*17mm)
SHFOP20-XRB (54*90*18.5mm)
SHFOP25-XRB (66*110*20.7mm)
SHFOP32-XRB (84*142*24.4mm)
SHFOP40-XRB (106*170*30mm)
SHFOP50-XRB (135*214*38mm)
