IKO CRB8016 Crossed Roller Bearing

BRS High Precision Cross Roller Bearing IKO CRB series

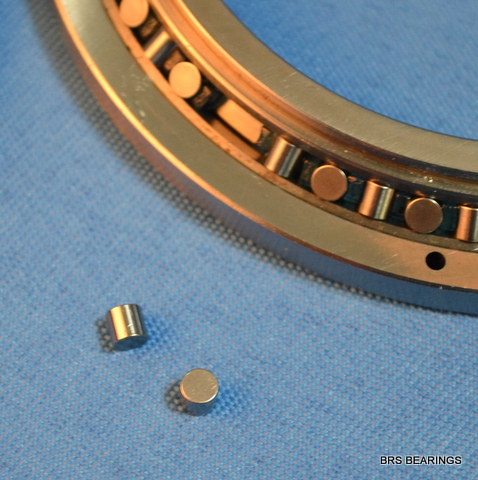

CRB Series bearing belongs to high precision cross roller bearings. Its cylindrical rollers are
placed in a 90°V groove, with each roller arranged in cross-shape with the adjacent one, and

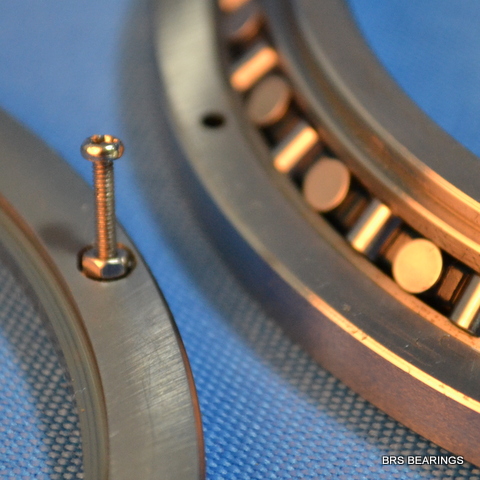

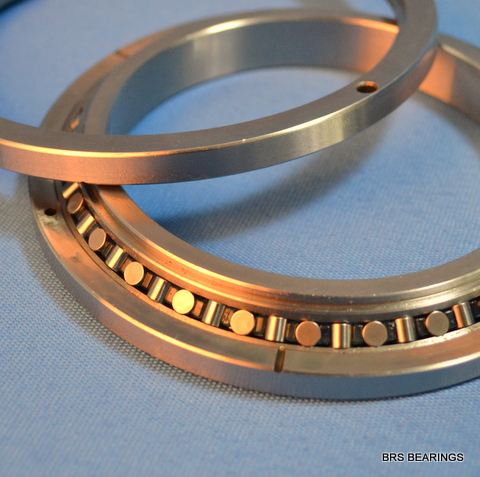

separated from each other by a spacer retainer. BRS High Precision Cross Roller
Bearing IKO CRB series‘ outer rings are designed to be separable, and fixed by screw.

BRS High Precision Cross Roller Bearing IKO CRB series Features
1. Sustain radial, axial and moment loads
2. Make the best use of space
3. Stable Rotation and high rigidity & running accuracy supplied with normal clearance, little
clearance or Even under a pre-load.

Applications
IKO CRB series cross roller bearings are specially suitable for the applications where
space is limited, while high rigidity and high rotation accuracy are required. Such as joints
and swiveling units of industrial robots, swiveling tables of machining centers, rotary units
of manipulators, precision rotary tables, medical equipment, measuring instruments and

IC manufacturing machines.

	Crossed Roller Bearing IKO Model CRB8016/CRB9016UU
	d	80 mm
	D	120 mm
	B	16 mm
	rsmin	0.6
	Cr	30.1 KN	Basic dynamic load rating
	Cor	42.1 KN	Basic static load rating
	Mass	0.74 kg
