CSF50-XRB special harmonice drive part bearings China

CSF50-XRB special harmonice drive part bearings,Rigia Harmonic Reducer Drive Bearing CSF-XRB Series
Harmonic reducer drive is a special form of power transmission, it has the advantage of high transmission ratio, high precision, high loading capacity, high efficiency with light weight and small size compared with conventional transmission mode.

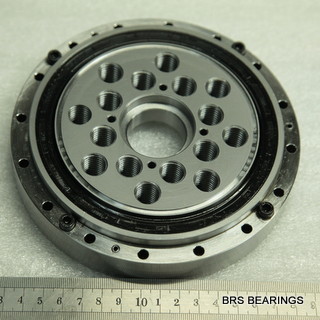

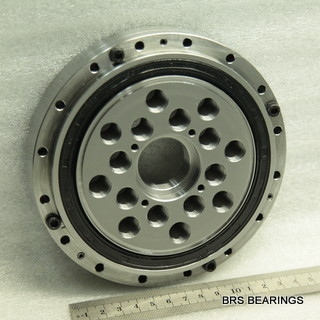

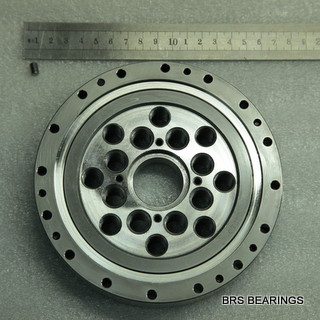

RIGIA CSF-XRB series crossed roller bearing is specially designed for CSF harmonic reducer. Its outer ring is separable and inner ring adopt integrated structure. Both inner ring and outer ring are processed with many precision holes for connecting with working parts.

Application
RIGIA Harmonic reducer bearing has a wide range of application in electronics industry, industrial automation, industrial robots, packaging machines, printing machines, and medical equipments because of its high precision, high rigidity and high transmission ratio.

Luoyang RIGIA Bearing Co.,Ltd developed and produced CSF-XRB series harmonic reducer drive bearing, and focus on products’ continuous improvement. RIGIA Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity. It's popular in domestic market, and also got favorable reputation from customers of Taiwan, Southeast Asia and Europe. To learn CSF50-

XRB's price, detailed parameters, usage and installation, maintanence or other infomation please contact us.

	Harmonic Reducer Bearing CSF50-XRB Parameters
	d	32/40 mm
	D	157 mm
	H	31 mm
	D1	147 mm	PCD
	D2	84 mm	PCD
	D3	60 mm	PCD
	φ1	16-φ5.5	Mounting Hole
	φ2	8-M14	Mounting Hole
	φ3	8-M14	Mounting Hole
	Mass	4.64 kg
