> IKO CRBF Crossed Roller Bearing

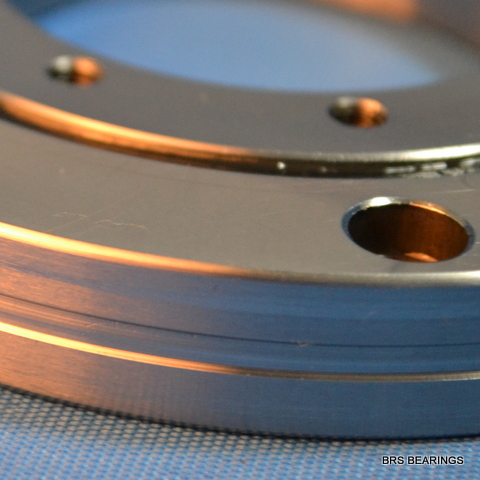

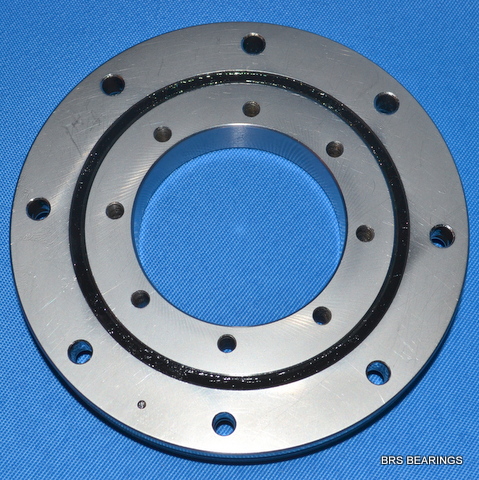

CRBF8022 AD UU slewing bearing for scissor lift table
- Structure:Crossed Roller Bearing
- Gear teeth: without
- Seals type:double seals
- Material: 52100/100Cr6/GCr15
- Product description: CRBF8022 AD UU slewing bearing for scissor lift table, it's crossed roller slewing bearing with mounting holes, size 80*165*22mm
Product introduction
CRBF8022 AD UU slewing bearing for hydraulic lift table
(CRBF series cross roller bearing, with mounting holes on inner and outer rings. AD means open type, AD UU means sealed on both sides)
RIGIA Bearing CRBF series crossed roller bearing with mounting holes:
| RIGIA Model |
IKO Model (open) |
IKO Model (double seals) |
d(mm) | D(mm) | B(mm) | PCD1 | PCD2 | rsmin | Cr (KN) | Cor (KN) | Mass(kg) |
| RIG27 | CRBF108AT | CRBF 108 AT UU | 10 | 52 | 8 | 16 | 42 | 0.3 | 2.91 | 2.43 | 0.12 |
| RIG42 | CRBF2012AT | CRBF 2012AT UU | 20 | 70 | 12 | 28 | 57 | 0.3 | 7.6 | 8.37 | 0.31 |
| RIG52 | CRBF2512AT | CRBF 2512 AT UU | 25 | 80 | 12 | 35 | 67 | 0.6 | 8.61 | 10.6 | 0.4 |
| RIG66 | CRBF3515AT | CRBF 3515 AT UU | 35 | 95 | 15 | 45 | 83 | 0.6 | 17.3 | 20.9 | 0.66 |
| RIG85 | CRBF5515AT | CRBF 5515 AT UU | 55 | 120 | 15 | 65 | 105 | 0.6 | 20.1 | 27.7 | 0.96 |
| RIG124 | CRBF8022AD | CRBF 8022 AD UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.63 |
| RIG124X | CRBF8022AT | CRBF 8022 AT UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.6 |
| RIG124A | CRBF8022A | CRBF 8022 A UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.6 |
To learn more about our company or get the Installation Instructions of CRBF8022 AD UU slewing bearing for scissor lift table regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBF8022 AD UU slewing bearing for scissor lift table are available upon request.
