Product introduction

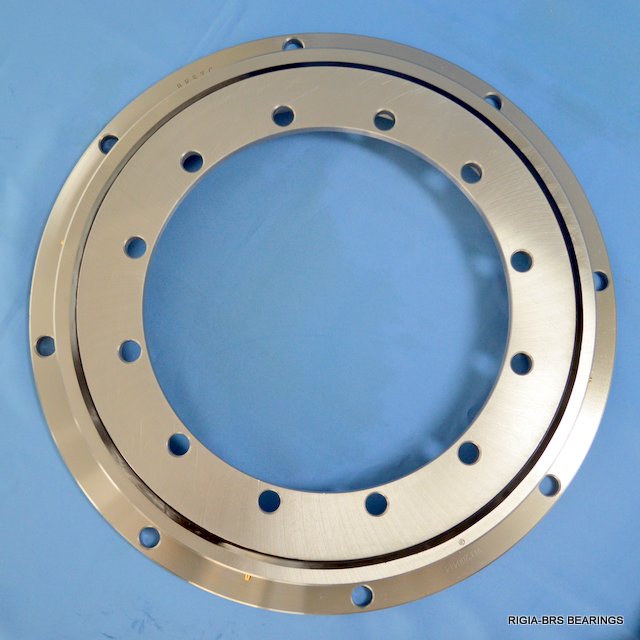

90-20 0413/0-37012 slewing ring bearing

size: 304*518*56mm

structure: four point contact ball slewing rings with flange.

More IMO 920 series untoothed slewing ring bearing models:

Part Number	Da (inch/mm)	di(inch/mm)	Width(inch/mm)	Weight(lb/kg)
90-20 0413/0-37012	20.394	11.969	2.205	53
	518	304	56	24
90-20 0541/0-37022	25.512	17.087	2.205	70
	648	434	56	32
90-20 0641/0-37032	29.449	21.024	2.205	84
	748	534	56	38
90-20 0741/0-37042	33.386	24.961	2.205	101
	848	634	56	46
90-20 0841/0-37052	37.323	28.898	2.205	115
	948	734	56	52
90-20 0941/0-37062	41.26	32.835	2.205	128
	1048	834	56	58
90-20 1091/0-37072	47.165	38.74	2.205	150
	1198	984	56	68

Equivalent Models

INA	SKF	KAYDON	IMO
VLU200414	RKS.23 0411	RK6-16P1Z	90-20 0413/0-37012
VLU200544	RKS.23 0541	RK6-22P1Z	90-20 0541/0-37022
VLU200644	RKS.23 0641	RK6-25P1Z	90-20 0641/0-37032
VLU200744	RKS.23 0741	RK6-29P1Z	90-20 0741/0-37042
VLU200844	RKS.23 0841	RK6-33P1Z	90-20 0841/0-37052
VLU200944	RKS.23 0941	RK6-37P1Z	90-20 0941/0-37062
VLU201094	RKS.23 1091	RK6-43P1Z	90-20 1091/0-37072
INA	Rollix	TGB	Rothe Erde
VLU200414	23-0411-01	SD.505.20.00.C	230.20.0400.013
VLU200544	23-0541-01	SD.650.20.00.C	230.20.0500.013
VLU200644	23-0641-01	SD.750.20.00.C	230.20.0600.013
VLU200744	23-0741-01	SD.850.20.00.C	230.20.0700.013
VLU200844	23-0841-01	SD.950.20.00.C	230.20.0800.013
VLU200944	23-0941-01	SD.1050.20.00.C	230.20.0900.013
VLU201094	23-1091-01	SD.1200.20.00.C	230.20.1000.013
