Product introduction

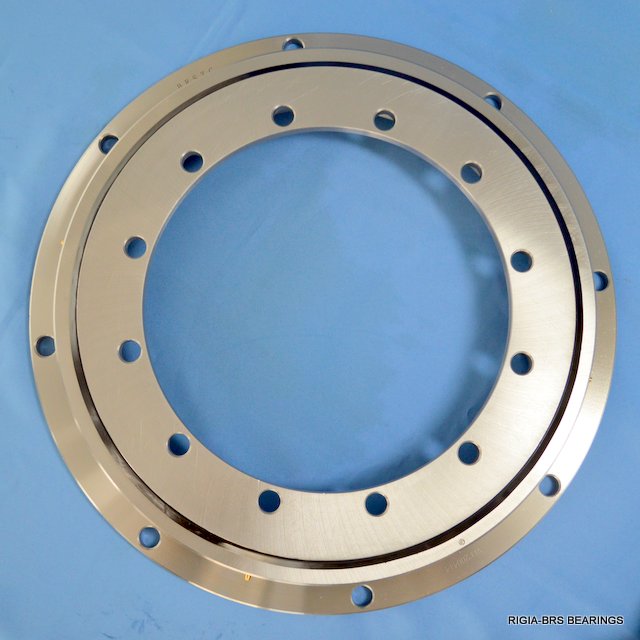

	230.20.0800.013 slewing ring bearings
	D	844 mm
	Da	948 mm
	Di	734 mm
	H	56 mm
	La	920 mm
	Li	762 kN
	Mass	47.8 kg

More rothe erde KD 210 series ungeared slewing ring bearing models

Part No.	D (mm)	Da (mm)	Di (mm)	H (mm)	La (mm)	Li (mm)	O (mm)	U (mm)	Weight (kg)
230.20.0400.013 Typ 21/520.0	414	518	304	56	490	332	412.5	412.5	23.4
230.20.0500.013 Typ 21/650.0	544	648	434	56	620	462	542.5	542.5	31.0
230.20.0600.013 Typ 21/750.2	644	748	534	56	720	562	642.5	642.5	36.4
230.20.0700.013 Typ 21/850.0	744	848	634	56	820	662	742.5	742.5	42.8
230.20.0800.013 Typ 21/950.0	844	948	734	56	920	762	842.5	842.5	47.8
230.20.0900.013 Typ 21/1050.0	944	1048	834	56	1020	862	942.5	942.5	53.1
230.20.1000.013 Typ 21/1200.0	1094	1198	984	56	1170	1012	1092.5	1092.5	61.9

Equivalent Models

INA	SKF	KAYDON	IMO
VLU200414	RKS.23 0411	RK6-16P1Z	90-20 0413/0-37012
VLU200544	RKS.23 0541	RK6-22P1Z	90-20 0541/0-37022
VLU200644	RKS.23 0641	RK6-25P1Z	90-20 0641/0-37032
VLU200744	RKS.23 0741	RK6-29P1Z	90-20 0741/0-37042
VLU200844	RKS.23 0841	RK6-33P1Z	90-20 0841/0-37052
VLU200944	RKS.23 0941	RK6-37P1Z	90-20 0941/0-37062
VLU201094	RKS.23 1091	RK6-43P1Z	90-20 1091/0-37072
INA	Rollix	TGB	Rothe Erde
VLU200414	23-0411-01	SD.505.20.00.C	230.20.0400.013
VLU200544	23-0541-01	SD.650.20.00.C	230.20.0500.013
VLU200644	23-0641-01	SD.750.20.00.C	230.20.0600.013
VLU200744	23-0741-01	SD.850.20.00.C	230.20.0700.013
VLU200844	23-0841-01	SD.950.20.00.C	230.20.0800.013
VLU200944	23-0941-01	SD.1050.20.00.C	230.20.0900.013
VLU201094	23-1091-01	SD.1200.20.00.C	230.20.1000.013
