Product introduction

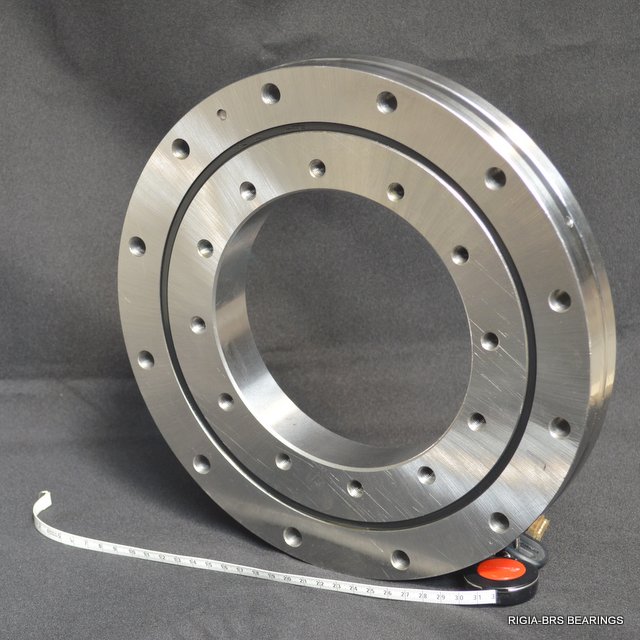

16322001 crossed roller bearing 34.25x46.25x4.25''

	di	870 mm	34.25''
	Do	1175 mm	46.25''
	H	108 mm	4.25''
	Ho	99 mm	3.88''
	Hi	99 mm	3.88''
	Mass	347 kg

Kaydon XR 16322001 crossed roller bearing 34.25x46.25x4.25'' can provide high stiffness and low rotational torque.

Application including radar, machine tools, turrets, turntables, etc.

Kaydon XR series crossed roller bearing models

Model	di	Do	H	Ho	Hi	Weight
	(in)	(in)	(in)	(in)	(in)	(lbs)
16318001	5.512	11.811	1.417	1.181	1.181	30
16319001	9.055	15.886	2.165	1.772	1.850	65
16320001	18.779	27.362	3.031	2.520	2.244	185
16321001	26.625	35.312	2.953	2.863	2.863	325
16322001	34.250	46.250	4.250	3.880	3.880	765
16323001	46.770	56.380	3.820	3.470	3.430	710
