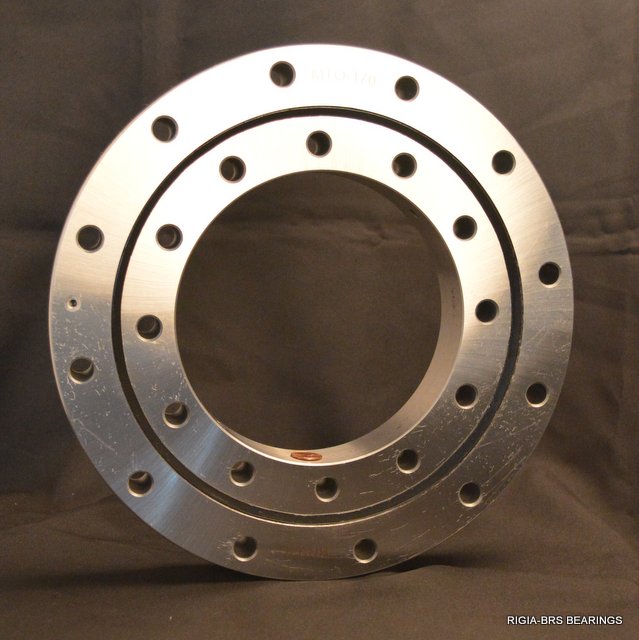

- MTO-170 Slew Bearing (stainless steel)
- RB thin section crossed roller bearing
- Replacement of light duty excavator's
- CSD20-XRB high stiffness cross roller
- Slewing ring bearings for wind turbine
- High speed Outer ring turning RE24025
Contact us
- ADD: Sanyuan Road 3#, New-hi Tech Zone, Luoyang, China
- TEL: +86-18937970107
- FAX: +86-379-62708625
- E-mail: info@rigiabearing.com


060.20.0544.500.01.1503 slew bearing ungeared
- Structure:four point contact ball slewing bearing
- Gear teeth: without
- Seals type:double seals
- Material: bearing steel
- Product description: 060.20.0544.500.01.1503 slew bearing ungeared is Rothe Erde KD 600 series slewing ring, suited for hoisting and mechanical handling, general mechanical engineering.
Product introduction
060.20.0544.500.01.1503 slew bearing ungeared
size: 472x616x56mm
structure: four point contact ball slewing bearing, ungeared, with mounting holes.
size: 472x616x56mm
structure: four point contact ball slewing bearing, ungeared, with mounting holes.
weight: 37kg
Applications:e.g. hoisting and mechanical handling, general mechanical engineering.
Rothe Erde KD 600 series single row ball bearing slewing ring OD 486~1166mm
Part No. | Da (mm) | Di (mm) | H (mm) | La (mm) | Li (mm) | O (mm) | U (mm) | Weight (kg) |
060.20.0414.500.01.1503 | 486 | 342 | 56 | 460 | 368 | 412.5 | 415.5 | 29 |
060.20.0544.500.01.1503 | 616 | 472 | 56 | 590 | 498 | 542.5 | 545.5 | 37 |
060.20.0644.500.01.1503 | 716 | 572 | 56 | 690 | 598 | 642.5 | 645.5 | 44 |
060.20.0744.500.01.1503 | 816 | 672 | 56 | 790 | 698 | 742.5 | 745.5 | 52 |
060.20.0844.500.01.1503 | 916 | 772 | 56 | 890 | 798 | 842.5 | 845.5 | 60 |
060.20.0944.500.01.1503 | 1016 | 872 | 56 | 990 | 898 | 942.5 | 945.5 | 67 |
060.20.1094.500.01.1503 | 1166 | 1022 | 56 | 1140 | 1048 | 1092.5 | 1095.5 | 77 |
