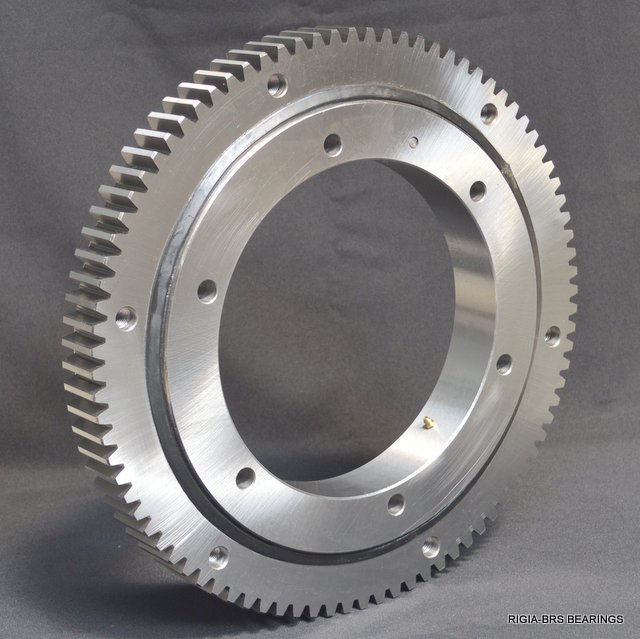

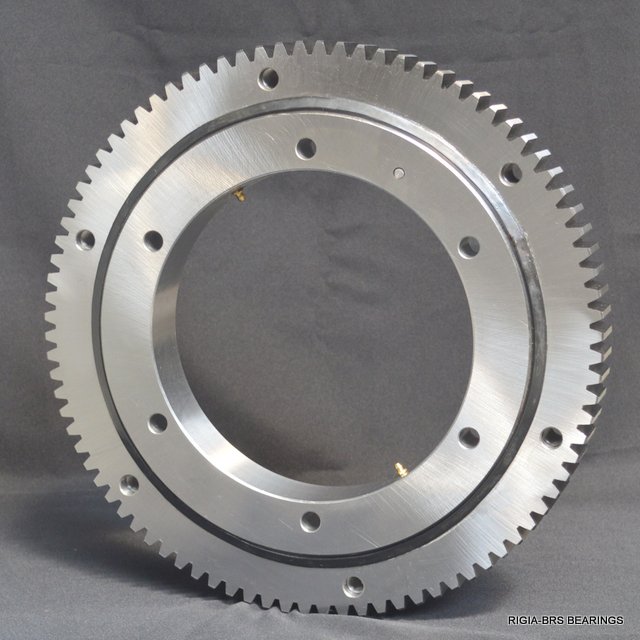

06.0307.00 cross rollers external gear slewing bearing

06.0307.00 cross rollers external gear slewing bearing

	d	234 mm
	D	403.5 mm
	B	55 mm
	PCD1	259 mm
	PCD2	358 mm
	Mass	25 kg

More Rollix cross roller external gear slewing bearing models:

Model	Dimensions			Mounting Size		Weight (kg)
	d(mm)	D(mm)	H(mm)	PCD1	PCD2
06.0307.00	234	403.5	55	259	358	25
06.0400.00	305	535	75	336	466	61
06.0475.22	383	589	75	410	540	62
06.0508.00	390	654	85	658	810	98
06.0823.18	717	979	100	753	893	178
06.0980.09	869	1144	100	910	1050	228
06.1166.00	984	1289.5	114	1035	1198	330
06.1250.21	1084	1476	110	1150	1350	503
06.1390.03	1206	1604	130	1280	1500	653
06.1595.04	1433	1836	135	1485	1700	791
06.1790.09	1615	2027	150	1675	1905	1004
06.2002.00	1815	2267	140	1880	2124	1174
06.2242.00	2042	2534	144	2112	2373	1482
06.2500.01	2290	2790	164	2360	2640	1895
06.2810.09	2600	3116	164	2670	2950	2197

RIGIA crossed roller slewing ring bearing features:
1. support axial & radial loads, as well as supported & suspended loads. One equals two normal bearings, position and cost saving.
2. Suitable where zero operating clearance or preload is required, or the rotational resistance must be especially uniform.
3. High rigidity & running accuracy supplied with normal clearance, little clearance or preload.
4. Easy for installation.

To learn more about our company or get the Installation Instructions of 06.0307.00 cross rollers external gear slewing bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of 06.0307.00 cross rollers external gear slewing bearing are available upon request.
