High rigid Crossed Roller Bearing RU66UUCC0

THK Spec Cross Roller Bearing RU66 -Integrated Inner/Outer Ring, 35mm ID x 95mm OD x 15mm Width

RIGIA industrial automation bearing mainly refers to crossed roller bearing. Its cylindrical rollers are in cross arrangement and between every two rollers there is a specially designed space retainer to ensure bearing's running accuracy.

Crossed roller bearing has the feature of high rigidity and high precision rotation, which  are basic requirements of industrial automation bearings. According to machines' different working conditions, BRS offers a whole set of bearing solution for special requirements like high/low temperature, food grade material, medical equipment, etc.

	THK Cross Roller Bearing RU66 Parameters
	Shaft dia:	35 mm
	d	35 mm
	D	95 mm
	dp	66 mm	Roller pitch circle dia.
	B	15 mm
	d1	3.1 mm
	r/min	0.6 r/min	Rotational speed
	ds (max)	59	Shoulder Height
	Dh (min)	74	Shoulder Height
	Cr	17.5 KN	Basic static load rating
	C0r	22.3 KN	Basic dynamic load rating
	Mass	0.62 kg
	PCD1	45 mm

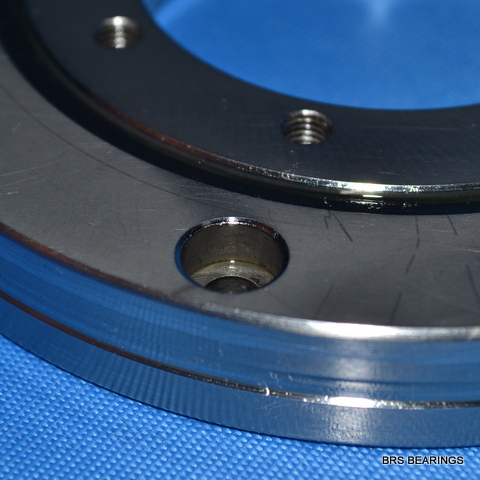

		8-M4 through	Mounnting hole
	PCD2	83 mm
		8-φ4.5 drilled through, φ8 counter bore depth 4.4	Mounnting hole
