> IKO CRBH Crossed Roller Bearing

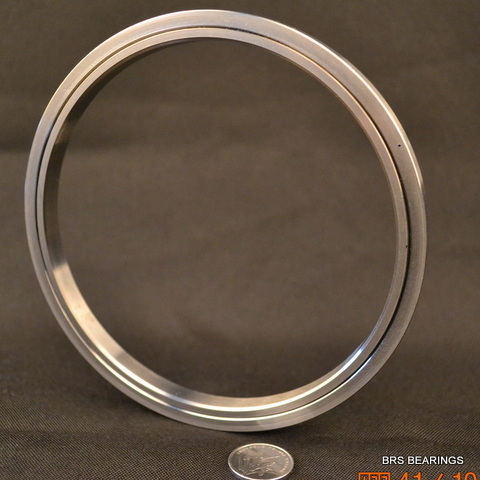

CRBH15025 A Crossed Roller Bearing

Structure:Crossed Roller Bearing
Gear teeth: without
Seals type:Open or UU
Material: 52100/100Cr6/GCr15
Product description: RIGIA CRBH15025 A crossed roller bearing, size:150*210*25mm, slim type(thin section), integrated inner ring & outer ring, open type. (CRBH15025 AUU is sealed type)
Inquiry

Product introduction

CRBH15025 A Crossed roller bearing
d	150 mm
D	210 mm
B	25 mm
Cr	84.3 KN	Basic dynamic load rating
Cor	138 KN	Basic static load rating
Mass	3.16 kg

CRBH14025A, CRBH14025AUU Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.

Features:

CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.

More CRBH series crossed roller bearing models(Open):

CRBH 208 A

CRBH 258 A

CRBH 3010 A

CRBH 3510 A

CRBH 4010 A

CRBH 4510 A

CRBH 5013 A

CRBH 6013 A

CRBH 7013 A

CRBH 8016 A

CRBH 9016 A

CRBH 10020 A

CRBH 11020 A

CRBH 12025 A

CRBH 13025 A

CRBH 14025 A

CRBH 15025 A

CRBH 20025 A

CRBH 25025 A

Sealed type:

CRBH 208 A UU

CRBH 258 A UU

CRBH 3010 A UU

CRBH 3510 A UU

CRBH 4010 A UU

CRBH 4510 A UU

CRBH 5013 A UU

CRBH 6013 A UU

CRBH 7013 A UU

CRBH 8016 A UU

CRBH 9016 A UU

CRBH 10020 A UU

CRBH 11020 A UU

CRBH 12025 A UU

CRBH 13025 A UU

CRBH 14025 A UU

CRBH 15025 A UU

CRBH 20025 A UU

CRBH 25025 A UU

A means open type, A UU means sealed on both sides.

To learn more about our company or get the Installation Instructions of CRBH15025 A/CRBH15025 AUU Crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBH15025 A/CRBH15025 AUU Crossed roller bearing are available upon request.
