> IKO CRBH Crossed Roller Bearing

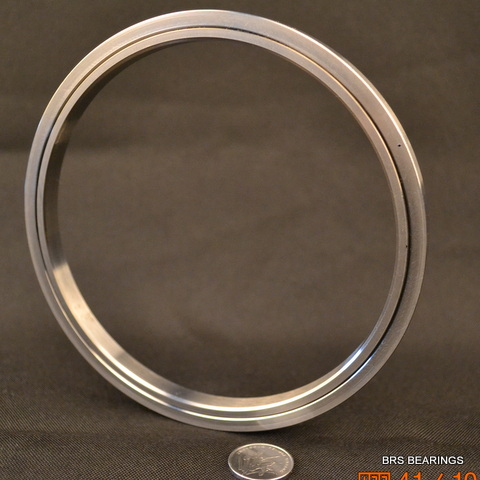

CRBH12025 A Crossed Roller Bearing
- Structure:Crossed Roller Bearing
- Gear teeth: without
- Seals type:Open or UU
- Material: 52100/100Cr6/GCr15
- Product description: RIGIA CRBH12025 A crossed roller bearing, size:120*180*25mm, slim type(thin section), integrated inner ring & outer ring, open type. (CRBH12025AUU is sealed type)
Product introduction
|
|
CRBH12025 A Crossed roller bearing | ||
| d | 120 mm | |||
| D | 180 mm | |||
| B | 25 mm | |||
| Cr | 73.47 KN | Basic dynamic load rating | ||
| Cor | 108 KN | Basic static load rating | ||
| Mass | 2.62 kg | |||
CRBH12025 A, CRBH12025A UU Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.
Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.
Open Type
Sealed Type
d (mm)
D (mm)
B (mm)
C (kN)
C0 （kN)
Mass (kg)
CRBH 208 A
CRBH 208 A UU
20
36
8
2.91
2.43
0.04
CRBH 258 A
CRBH 258 A UU
25
41
8
3.12
2.81
0.05
CRBH 3010 A
CRBH 3010 A UU
30
55
10
7.6
8.37
0.12
CRBH 3510 A
CRBH 3510 A UU
35
60
10
7.9
9.13
0.13
CRBH 4010 A
CRBH 4010 A UU
40
65
10
8.61
10.6
0.15
CRBH 4510 A
CRBH 4510 A UU
45
70
10
8.86
11.3
0.16
CRBH 5013 A
CRBH 5013 A UU
50
80
13
17.3
20.9
0.29
CRBH 6013 A
CRBH 6013 A UU
60
90
13
18.8
24.3
0.33
CRBH 7013 A
CRBH 7013 A UU
70
100
13
20.1
27.7
0.38
CRBH 8016 A
CRBH 8016 A UU
80
120
16
32.1
43.4
0.74
CRBH 9016 A
CRBH 9016 A UU
90
130
16
33.1
46.8
0.81
CRBH 10020 A
CRBH 10020 A UU
100
150
20
50.9
72.2
1.45
CRBH 11020 A
CRBH 11020 A UU
110
160
20
52.4
77.4
1.56
CRBH 12025 A
CRBH 12025 A UU
120
180
25
73.4
108
2.62
CRBH 13025 A
CRBH 13025 A UU
130
190
25
75.9
115
2.82
CRBH 14025 A
CRBH 14025 A UU
140
200
25
81.9
130
2.96
CRBH 15025 A
CRBH 15025 A UU
150
210
25
84.3
138
3.16
CRBH 20025 A
CRBH 20025 A UU
200
260
25
92.3
169
4
CRBH 25025 A
CRBH 25025 A UU
250
310
25
102
207
4.97
A means open type, A UU means sealed on both sides.
To learn more about our company or get the Installation Instructions of CRBH12025 A/CRBH12025 AUU Crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBH12025 A/CRBH12025 AUU Crossed roller bearing are available upon request.
