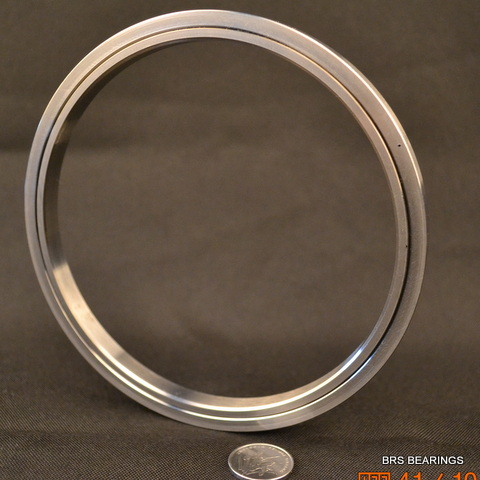

CRBH 20025 A Crossed roller bearing

		CRBH 20025 A Crossed roller bearing
		d	200 mm
		D	260 mm
		B	25 mm
		Cr	92.3 KN	Basic dynamic load rating
		Cor	169 KN	Basic static load rating
		Mass	4 kg

CRBH 20025 A, CRBH 20025 AUU Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator). It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.

Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.

More CRBH series crossed roller bearing models(Open):

A means open type, A UU means sealed on both sides.

To learn more about our company or get the Installation Instructions of CRBH20025A/CRBH20025AUU Crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRBH20025A/CRBH20025AUU Crossed roller bearing are available upon request.
